Product Description:

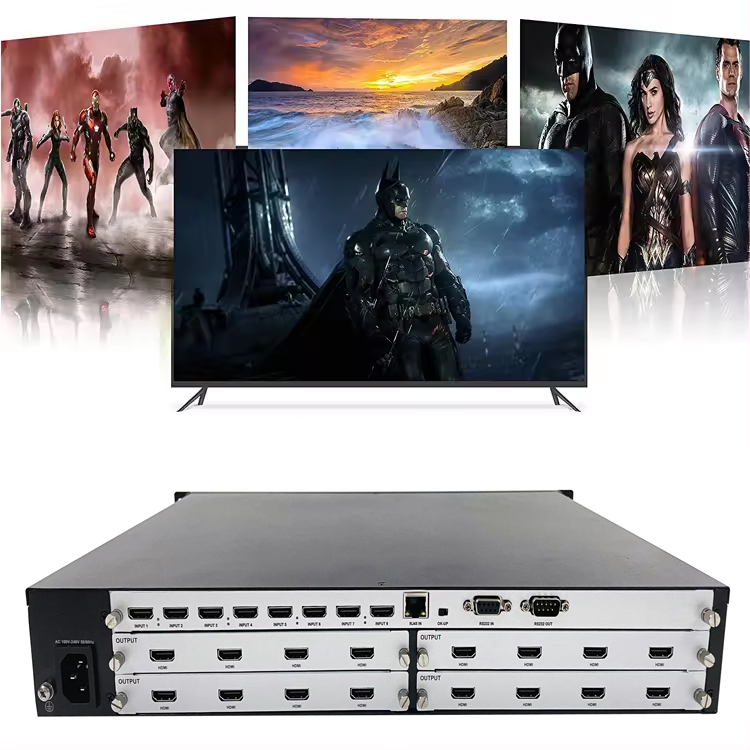

The Modular Video Wall Controller is a kind of pure hardware
equipment specializing in image processing based on FPGA
architecture, which can display multiple dynamic pictures on
multiple screens and realize the function of multi window splicing
roaming. This product has DVI, VGA, HDMI, SDI, YPbPr, CVBS and IP
access capabilities. Each channel has a single point of 6G
bandwidth. It uses built-in clock synchronization technology to
ensure cross screen splicing to achieve pixel level accurate
synchronization. Perfectly support various kinds of high-definition
digital / analog video signals between the overlay, roaming,
windowing and other complex video image processing. The product
supports the splicing of narrow edge LCD, DLP, led and other
display terminals, and can be widely used in the fields of command
and monitoring conference of government, fire protection, public
security, energy, transportation, power, military and other
industries
Features:
- Product Name: Modular Video Wall Controller
- Flexible Video Wall Control System
- Modular Display Wall Manager
- Adjustable Video Wall Controller
- Audio Output: 3.5mm Analog Audio Output Port
- Input Ddc Signal: 5 Volts
- Display Technology: LCD
- Number Of Displays Supported: Up To 64
- Multi-Window Capability: Yes
Technical Parameters:
| Technical Parameter | Description |
|---|
| Video Wall Modes | Mirror, Extended, Video Wall |
| Output Port | DVI, HDMI |
| Audio Output | 3.5mm Analog Audio Output Port |
| Dual Power Supply | Support |
| Output Resolution | 1920*1200/60HZ (compatible With Standard Resolution) |
| System Control Software | Application Pro Dedicated Control Software |
| Multi-Window Capability | Yes |
| Display Technology | LCD |
| Input DDC Signal | 5 Volts |
| Resolution | Up to 3840x2160@60Hz |
| Output Signal Types | HDMI, DVI, VGA, DisplayPort |
Applications:
Entertainment Venues
The Modular Video Wall Controller plays a pivotal role in live
events, concerts, and exhibitions. By employing the Modular Video
Wall Controller, venues can deliver immersive audiovisual
experiences, engaging audiences with vibrant visuals and seamless
transitions.
Education and Training Facilities
Educational institutions can enhance their classrooms with the
Modular Video Wall Controller. This technology supports multimedia
presentations and interactive learning, fostering collaborative
environments that encourage student participation and remote
education.
Public Information Systems
The Modular Video Wall Controller is utilized in public venues,
such as airports and train stations, to provide essential
information to the public. With the Modular Video Wall Controller,
organizations can deliver wayfinding solutions and public service
announcements through engaging and informative displays.
Art and Creative Installations
Museums and galleries can incorporate the Modular Video Wall
Controller to showcase digital art. This application allows for
creative installations that provide immersive experiences,
enhancing visitor engagement through interactive and dynamic
displays powered by the Modular Video Wall Controller.
