Product Description:
The HDMI Matrix Switcher is a versatile audio and video switching device that allows
seamless control over multiple HDMI inputs and outputs, ideal for
home theaters, conference systems, multimedia displays, and more.
This device enables users to switch between various source devices
(e.g., gaming consoles, Blu-ray players, streaming devices) and
displays (e.g., TVs, projectors) with ease, allowing any input to
be routed to any output. Key features include:
Key Features:
- Multiple Input/Output Support: Available in configurations such as 2x2, 4x4, and 8x8, allowing
multiple devices to connect simultaneously and switch between
signals freely.
- 4K UHD Support: Capable of supporting up to 4K@60Hz resolution, delivering
ultra-high-definition picture quality for high-end home theater and
professional display needs.
- Audio Extraction: Built-in audio extraction function allows the HDMI audio signal
to be separated and sent to external audio systems.
- HDR and EDID Management: Compatible with HDR (High Dynamic Range) for enhanced color and
contrast, and supports EDID (Extended Display Identification Data)
management for optimal device compatibility.
- Remote Control: Comes with a remote or supports RS-232 and IP control, allowing
users to easily manage input/output devices remotely.

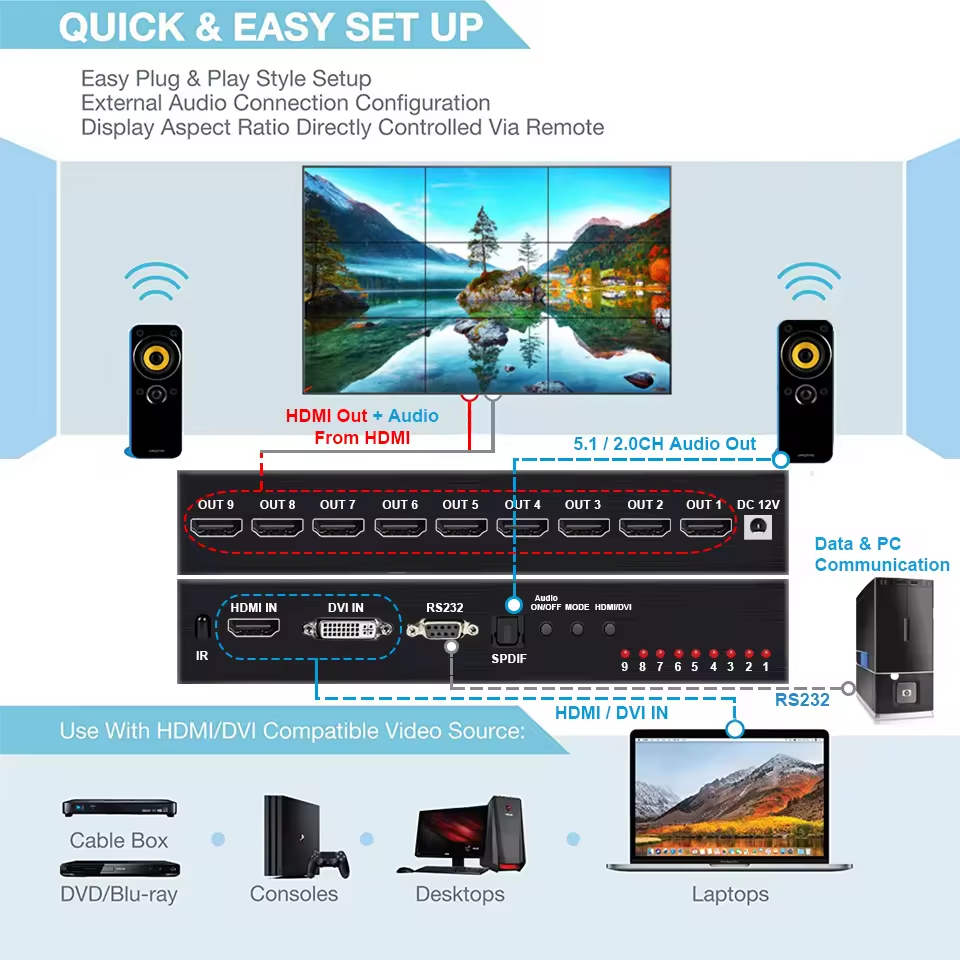

- Plug-and-Play: This HDMI Matrix Switcher is simple installation with no complicated setup; just connect the
devices and it’s ready to use.
| Technical |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) |
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby
TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 |
| L/R Audio Formats | PCM2.0 |
| HDR formats | HDR10,HDR10+,Dolby Vision, HLG |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| Connection |
| Input Ports | 8×HDMI Type A [19-pin female] 1×IR EXT [3.5mm Stereo Mini-jack] |
Output Ports | 8×HDMI Type A [19-pin female] 8×Coax Audio (RCA) 8×L/R Audio [3.5mm Stereo Mini-jack] |
| Control Ports | 1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9] |
| Mechanical |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 440mm (W)×200mm (D)×44.5mm (H) |
| Weight | 2.8kg |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 43W |
| Operating Temperature | -10°C ~ 45°C / 14°F ~ 113°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Resolution / Cable length | 4K60 - Feet / Meters | 4K30 - Feet / Meters | 1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| 4K HDMI Matrix Switcher with Audio Extraction |
Applications:
- Home Entertainment Systems: This HDMI Matrix Switcher is ideal for home entertainment
systems, enabling easy switching between gaming consoles, Blu-ray
players, and streaming devices.
- Conference Rooms and Classrooms: This HDMI Matrix Switcher is ideal for switching between
projectors and monitors for presentations and teaching.
- Multimedia Showrooms and Control Centers: The multi-input, multi-output matrix switching capability meets
the needs of complex signal distribution and monitoring setups.
The HDMI Matrix Switcher offers a high-performance video switching experience, allowing
users to easily operate multiple devices and enjoy seamless signal
transmission and display management.
The 4K HDMI Matrix Switcher with Audio Extraction is ideal for home theaters, allowing seamless control over multiple devices and displays.
