Product Description:

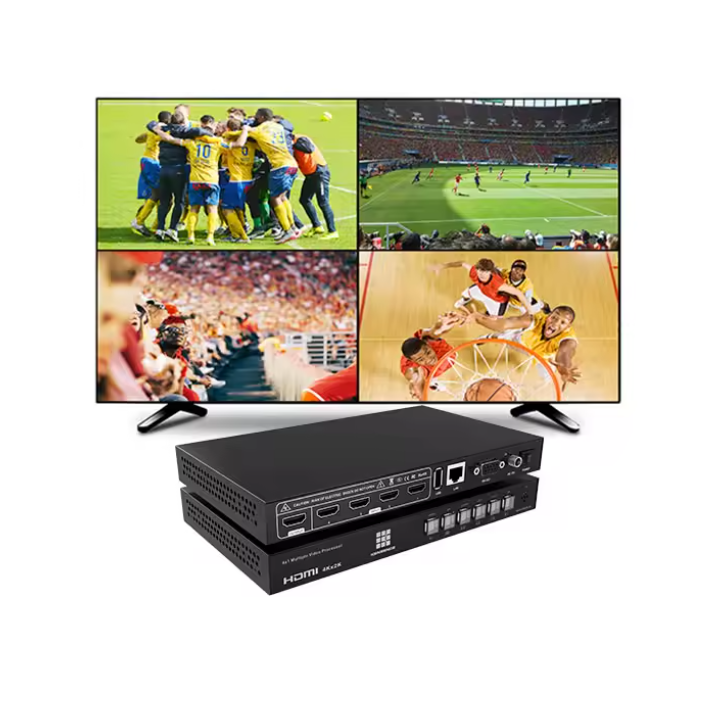

Product Overview: LCD Video Wall Controller
The LCD Video Wall Controller is a core device designed to manage
multiple LCD screens, transforming them into a large, seamless
video wall. This controller is widely used in surveillance centers,
command rooms, corporate meeting spaces, and advertising displays,
making it an essential solution for industries that require
high-quality visuals on large displays. The LCD Video Wall
Controller distributes input video signals to multiple LCD
displays, supporting various display modes such as full screen,
split screen, zoom, and overlay. With its high-performance image
processing capabilities, the controller ensures crisp, smooth
visuals, even at high resolutions.
Technical Parameters:
| Name | Specification |
| Input signal | |
| VGA | HD15 interface and link with 1 audio interface of 3.5 Support 640*480/85HZ to 1920*1200/60HZ |
| HDMI | HDMI 1.4(HDCP 1.3) DVI 1.0 ,HDMI embed audio |
| Video | Automatic identification the syetem of NTSC,PAL and SECAM,link with
1 audio interface of 3.5 |
| USB | Standard interface of 2.0,can insert U disk,embed audio; Support video,image,MP3,TXT |
| Output signal | |
| HDMI interface | 25 HDMI output,support joint pattern of 2*2,1*4,4*1; Support customizing output signal of 2 to 25; 1920*1080P/60HZ,1280*720,60HZ; |
| Audio | 3.5 Audio interface,support left and right channels and stereo,AV
signal switch synchronously |
| others | |
| Control mode | RS232,Remote ,case key |
| Power supply | AC: 100 to 240 V |
| Joint pattern | Quad standard joint,single machine customize joint of 2 to 25 |
| Power | 20W |
| Case size | |
| Dimensions(1U) | 1U 19 inch standard crate,442mm(L)*45mm(H)*242mm(W) |
| Weight(1U) | 2.5KG |
Applications:
- Control Rooms: The LCD Video Wall Controller is perfect for control rooms where
multiple displays are needed to monitor different sources
simultaneously. It provides real-time image processing and control,
making it easy for operators to manage critical information.
- Public Events: The LCD Video Wall Controller can be used to create eye-catching
video walls at public events, such as concerts, conferences, and
exhibitions. With its high-definition output, it is sure to impress
and engage the audience.
- Retail Stores: Retailers can use the controller to create dynamic and attractive
digital signage displays, promoting their products and services.
With its multi-window display feature,LCD Video Wall Controller
allows for versatile and creative content layouts.
- Education: In educational institutions, the controller can be used to enhance
the learning experience by displaying multimedia content on
multiple screens. It also offers interactive features, such as
remote control and RS232 connectivity.
- Entertainment Venues: The LCD Video Wall controller is capable of creating immersive
video walls in entertainment venues, such as theaters, museums, and
theme parks. It can be used for advertising, informational
displays, and visual effects.
Conclusion
The LCD Video Wall Controller is a versatile, high-performance, and
cost-effective solution for creating impressive video walls. Its
advanced features, wide range of applications, and reliable
performance make it a must-have for any organization or event
looking to make a statement with their displays.
