Product Description:

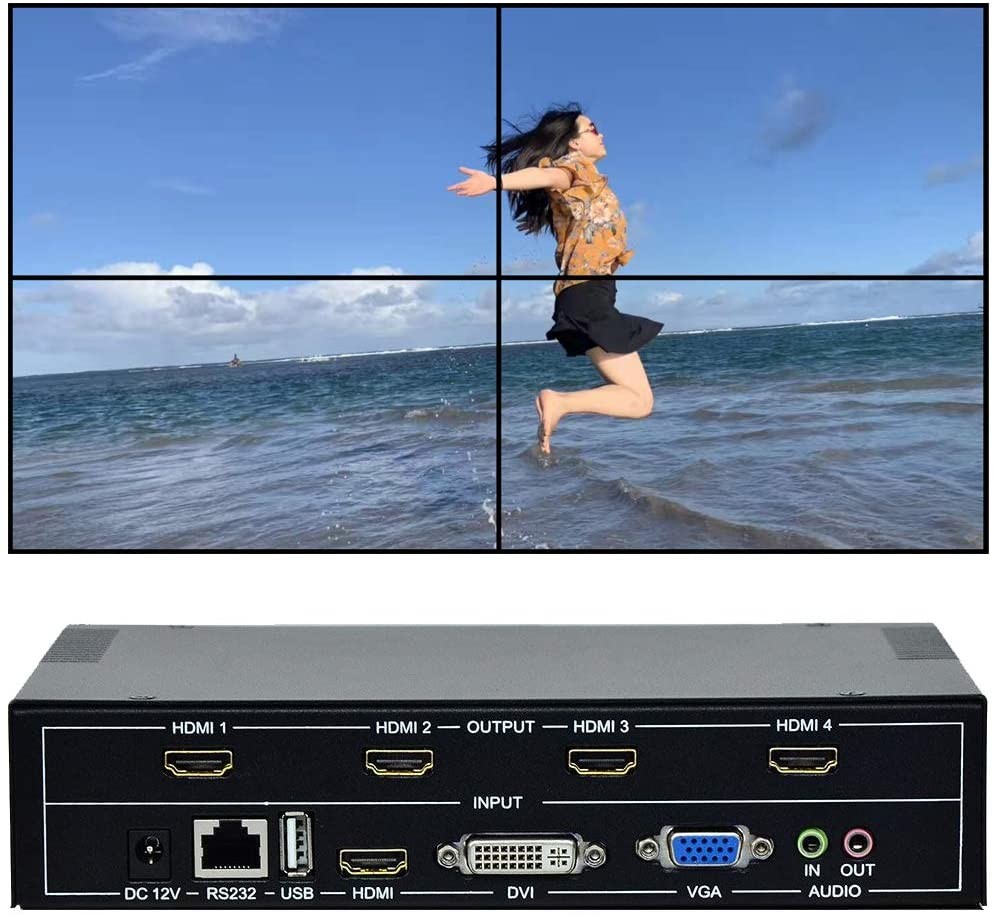

Product Overview: LCD Video Wall Controller
The LCD Video Wall Controller is a cutting-edge product designed to
enhance the visual display of multiple screens. It serves as a
central hub for controlling and managing the content displayed on a
video wall, making it an essential tool for businesses, schools,
and other organizations.
Power Supply: AC100-240V
The LCD Video Wall Controller operates on a wide range of power
supply, from AC100 to AC240 volts. This makes it suitable for use
in different countries and regions, providing users with a
convenient and versatile solution.
Display Ratio: 16:9
The controller supports a 16:9 display ratio, the most commonly
used aspect ratio in the industry. This ensures that the content
displayed on the video wall is optimized for a wide range of
applications, from video presentations to digital signage.
Display Resolution: 1920x1080
With a display resolution of 1920x1080, the LCD Video Wall
Controller delivers stunning and crisp visuals on the video wall.
This high-resolution display ensures that every detail of the
content is accurately portrayed, providing an immersive viewing
experience for the audience.
Control Method: Remote Control/RS232
The LCD Video Wall Controller offers two convenient control
methods: remote control and RS232. With the remote control, users
can easily manage and adjust the settings of the video wall from a
distance. The RS232 control allows for a more advanced and precise
control of the video wall, making it ideal for professional use.
In conclusion, the LCD Video Wall Controller is an essential and
versatile tool for managing and optimizing the display of video
walls. With its advanced features, wide compatibility, and
convenient control methods, it is the perfect solution for
businesses and organizations looking to enhance their visual
displays.
Technical Parameters:
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution
up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |
| Dimension (package) | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight | 4 port: 1.6 Kg 5~10 port: 2.5 KG |
Applications and Scenarios
The LCD Video Wall Controller is perfect for a variety of
applications and scenarios. Some of the most common uses include:
- Advertising and marketing displays in retail stores, shopping
malls, and public spaces
- Information displays in airports, train stations, and other
transportation hubs
- Entertainment and gaming displays in casinos, theme parks, and
other entertainment venues
- Education and training displays in classrooms, training centers,
and conference rooms
- Command and control displays in control rooms, security centers,
and emergency response centers
Ordering Information
