Product Description:

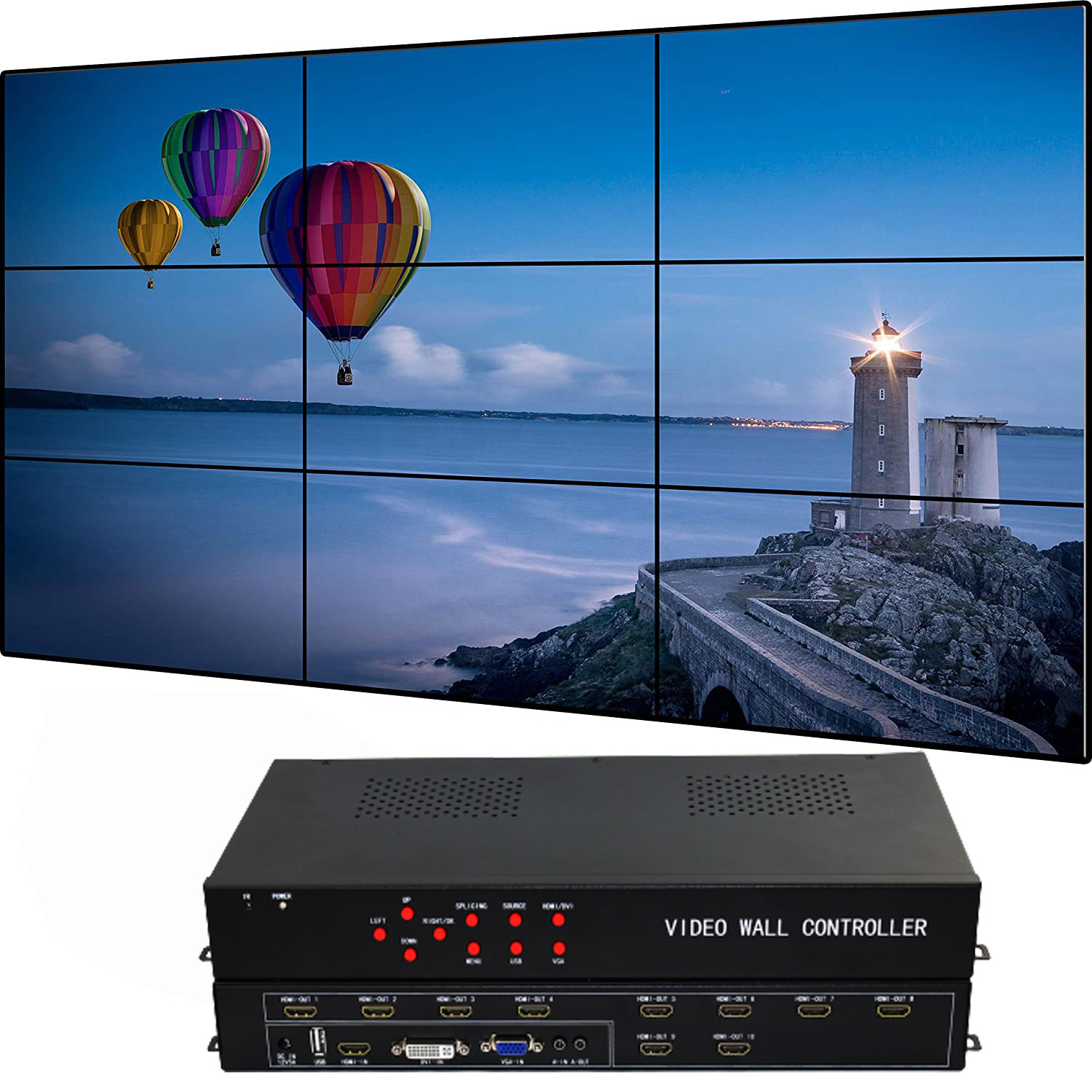

Product Overview: LCD Video Wall Controller
The LCD Video Wall Controller is a high-performance device designed
to manage and display content across multiple LCD screens
seamlessly. It allows users to create large-scale, immersive video
walls with ultra-high resolution and excellent synchronization.
This controller is ideal for a variety of industries, providing
precise control over content distribution to ensure a clear,
vibrant, and consistent display across multiple panels.
Featuring advanced signal processing, the LCD Video Wall Controller
supports multiple video inputs and outputs, allowing flexibility in
configuration. With capabilities like 4K support, dynamic scaling,
and real-time switching, it ensures smooth operation even in
demanding environments.
Technical Parameters:
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution
up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |
| Dimension (package) | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight | 4 port: 1.6 Kg 5~10 port: 2.5 KG |
Applications and Scenarios
- Control Rooms: The LCD Video Wall Controller is perfect for monitoring centers,
security operations, and traffic management systems, providing
clear and effective visual data presentation.
- Retail and Advertising: The LCD Video Wall Controller is Ideal for showcasing promotional content in shopping malls,
airports, and other high-traffic areas to attract customer
attention.
- Broadcasting: This wall controller is suitable for studio video walls in
newsrooms and broadcasting control centers, enhancing the viewer
experience with dynamic displays.
- Corporate and Conference Rooms: Facilitates impactful presentations and collaborative workspaces,
helping teams share ideas effectively.
- Education and Exhibition: Enhances teaching environments and museum displays with immersive
visuals that engage and inform audiences.
