Product Description:
LCD Video Wall Controller
The LCD Video Wall Controller is a high-tech device designed for
professional use in various settings, such as control rooms,
conference rooms, and entertainment venues. With its advanced
features and superior performance, it is the perfect solution for
creating stunning video walls.
Product Overview

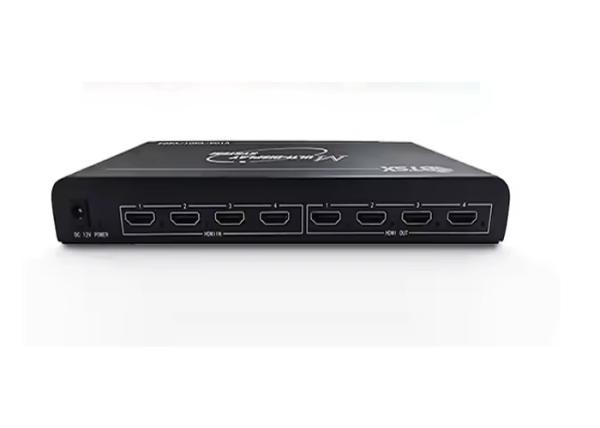

The LCD Video Wall Controller is a compact and powerful device that
allows you to display multiple video sources on a large video wall.
It is compatible with a wide range of input signals, including
HDMI, VGA, AV, YPbPr, and USB, making it easy to connect to various
devices such as computers, cameras, and media players.
Key Features
- High-Quality Output: The LCD Video Wall Controller supports high-resolution output,
providing crystal-clear images and videos on the video wall.

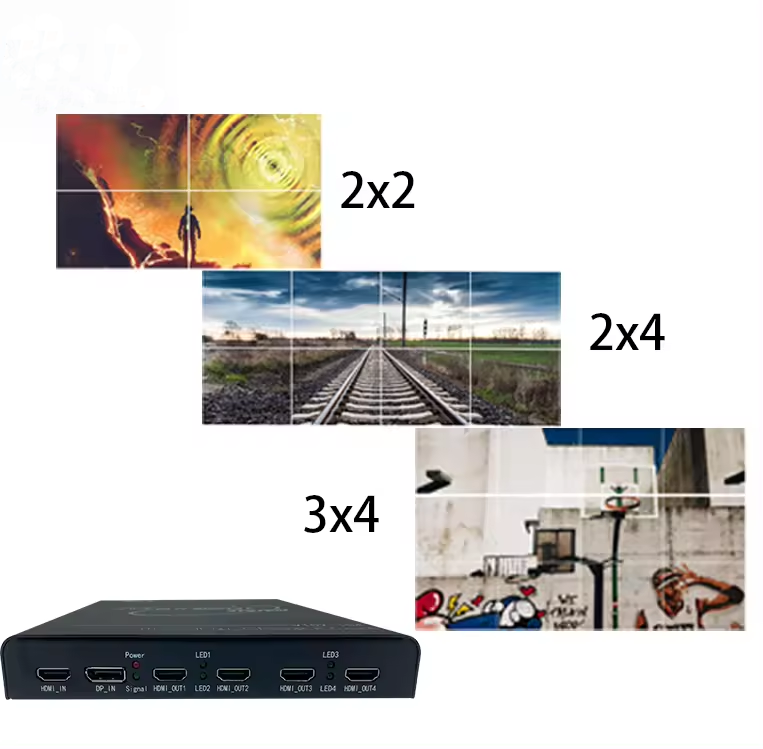

- Flexible Display Modes: With the ability to support various display modes, such as full
screen, split screen, and picture-in-picture, the LCD Video Wall
Controller offers maximum flexibility in creating unique video wall
layouts.
- Easy Control: You can easily control the LCD Video Wall Controller through a
remote control or via RS232, allowing for effortless operation and
customization.
- Durable Design: The LCD Video Wall Controller is built to withstand harsh working
environments, with a working temperature range of -20~60℃.
- Wide Power Supply Range: The LCD Video Wall Controller is compatible with a wide range of
power supply, from AC100V to AC240V, making it suitable for use in
different countries and regions.
Overall, the LCD Video Wall Controller is a reliable and efficient
solution for creating impressive video walls that will leave a
lasting impression on your audience.
Technical Parameters:
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution
up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V3A |
| Dimension (package) | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight | 4 port: 1.6 Kg 5~10 port: 2.5 KG |
Applications:
The LCD Video Wall Controller is perfect for a variety of
applications and scenarios. Some of the most common uses include:
- Advertising and marketing displays in retail stores, shopping
malls, and public spaces
- Information displays in airports, train stations, and other
transportation hubs
- Entertainment and gaming displays in casinos, theme parks, and
other entertainment venues
- Education and training displays in classrooms, training centers,
and conference rooms
- Command and control displays in control rooms, security centers,
and emergency response centers
Ordering Information
To order the LCD Video Wall Controller, simply contact us with your
requirements. We offer a flexible payment option, including T/T,
Western Union, and MoneyGram. With a supply ability of 1000 pcs per
week, we can fulfill your order quickly and efficiently.
The product will be delivered in a secure and durable carton box,
ensuring safe transportation. It also comes with a standard export
package, making it suitable for international shipping.
Don't settle for anything less than the best when it comes to
managing your video wall display. Choose the LCD Video Wall
Controller and experience the difference in quality and
performance. Contact us today to place your order!
