1 In 4 Out HDMI 1.4 4k Video Wall Processor Resolution 3840X2160

1. Overview

The controller is designed to be a truly in/out modular video wall processor, to capture,

AD convert, route, distribute all-format signal to multiple video wall, including LCD TV,DID,

DLP, Plasma, etc., while maintaining a true digital signal.

The product uses high-definition processing chip, compatible with 4K_30HZ (3840X2160)

signal, and audio output synchronously with the corresponding video.

2. Specification

3. Key Features

1. Support 4K UHD Video Signal Screen Display (2X2 Stitching State)

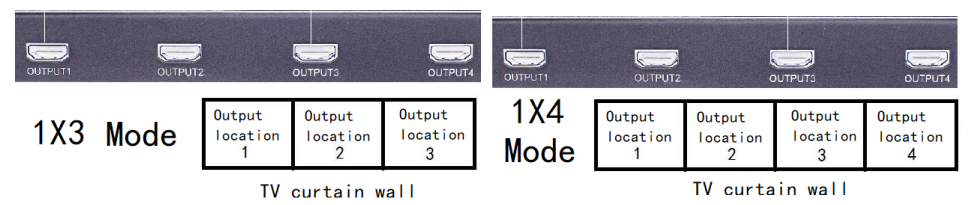

2. Supports 2X2, 2X1, 3X1, 4X1, 1X2, 1X3, 1X4 modes of the screen, and switches the screen

splicing mode through the “Mode” button on the device panel.

------------------------------

A "Mode" mode setting button is set on the device panel to set the splicing mode of the screen.

The key functions are as follows:

By tapping the "Mode" button at intervals of 1 seconds, you can switch the splicing mode of the screen,

such as 2X2, 1X2, 2X1, 1X3, 3X1, 1X4, 4X1.

When using LCD TV, users can flip the TV to reduce the splicing gap, as shown in the figure below

This function needs to turn on the "flip" mode in the TV. You can refer to the user manual of the TV to

find the "flip" function and activate it, or contact the TV manufacturer directly to provide setting support.

4. Package List

1 x Main Unit. 2x2 Video Wall Controller

1 x Power Adapter

1 x User Manual

5. System Topology
