Quad RS232 16x1 HDMI MultiViewer Seamless Switcher ESD Protection

Quad RS232 16x1 HDMI MultiViewer Seamless Switcher ESD Protection

16x1 HDMI Multi-Viewer with Seamless Switcher

1. Introduction

This product is a high performance 16 by 1 Multi-Viewer wit seamless switcher. It supports sixteen High definition input source display on one screen. As a switcher, it can also seamlessly switch the sixteen HD input freely.

2. Features

1,Support scale up, scale down function；
2,Support multiple output resolution；
3,Support digital audio format LPCM/AC3/DTS
4,Support button and RS-232 control；
Package Contents

①1× 16×1 HDMI Multi-Viewer

② 1× User Manual

③1× RS-232 Cable

④2× Mounting ears

⑤16 x DVI to HDMI cable

3. Pictures for 16x1 HDMI Multi-Viewer with Seamless Switcher.

Quad RS232 16x1 HDMI MultiViewer Seamless Switcher ESD Protection

4. Specifications

Technical
Video Bandwidth	2.25Gbps
Input Ports	16 × HDMI (Female type),1x RS232
Output Ports	1 × HDMI (Female type),

Audio output	PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1

	480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
Input Resolution	1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60,
	1024x768@60,1280x720@60,1920x1080@60;

Output Resolution	1080p,1080i,720p,1024x768,1360x768

ESD Protection	±8kV (Air-gap discharge), ±4kV (Contact discharge)

Power Supply	12V/5A DC (US/EU standards, CE/FCC/UL certified)

Dimensions	440mm(W)×200mm(D)×45 mm(H)

Weight	1800g

Chassis Material	Metal

Silkscreen Color	Black
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity	20~90% RH (non-condensing)
Power Consumption	24W

5. Operation Controls and Functions

5.1 Front Panel

Number	Name		Function description
1	POWER		Press this button to power the device on/off. The
1	POWER		LED will illuminate green when the power is on,
			red when it is in 'Standby' mode.
2			Press this button to lock all the buttons on the panel,
2	LOCK		press again to unlock. The red LED will illuminate
	LOCK		when the button is locked. On the contrary, turn dark
			when the button is locked. On the contrary, turn dark
			when unlock.
3	IR receiver window		Receive the IR from the remote controller.
4	HDMI input selection		Press to select the input from 1 to 16.
	button area
5	MODE		Press the button to select display mode.
6	RESOLUTION		Press the button to select the output resolution.

	NO.		RESOLUTION
	1	1080P, Main image audio
	2	1080I, Main image audio
	3	720P, Main image audio
	4	1360x768, Main image audio
	5	1024x768, Main image audio

5.2 Rear Panel

4/8

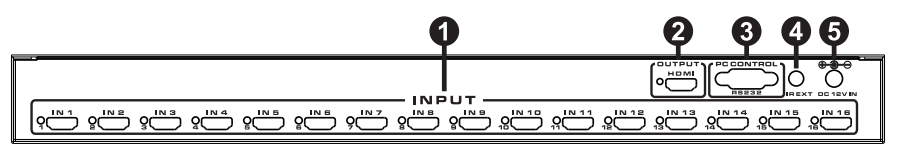

Number	Name	Function descriptions
1	HDMI INPUT Area	Connect HDMI sources. LED 1-16 illuminate when
1	HDMI INPUT Area	the HDMI signal plug in corresponding input port
		with HDMI cable.
2	HDMI OUTPUT Area	Output for displays, AVR etc. LED illuminate when
2	HDMI OUTPUT Area	the display plug in corresponding output port with
		HDMI cable.
3	RS-232	Connect to a PC or control system with D-Sub 9-pin
3	RS-232	cable for the transmission of RS-232 commands.
		cable for the transmission of RS-232 commands.
4	IR EXT	IR extender receiver port, connect with IR receiver
4	IR EXT	cable.
		cable.
5	DC POWER IN	Plug the 12V/5A DC power supply into the unit and
5	DC POWER IN	connect the adapter to an AC outlet.
		connect the adapter to an AC outlet.

6. Detail description of display mode

The 16x1 multi-viewer have 4 display modes.

MODE1:The 16x1 multi-viewer will separate display the sixteen HD input, and now it is a seamless switcher.

Input

MODE1-16×1 Seamless Switcher

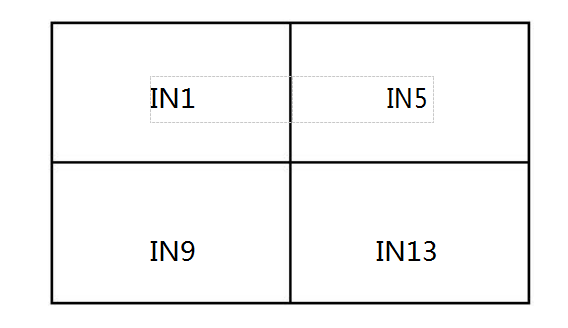

MODE2: The 16x1 multi-viewer divides the four HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote, the HDMI output audio will corresponding to the selected input source.

IN9 IN13

MODE2-4×1 Multi-Viewer

5/8

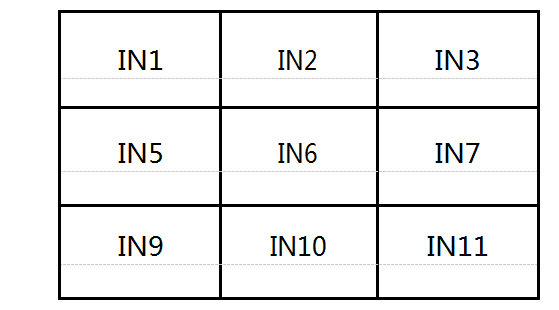

MODE3: The 16x1 multi-viewer divides the nine HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote, the HDMI output audio will corresponding to the selected input source.

MODE3-9×1 Multi-Viewer

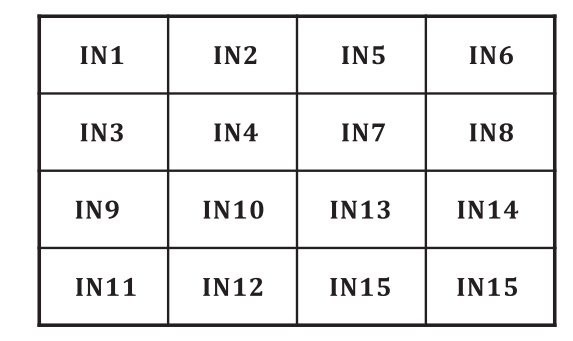

MODE4: The 16x1 multi-viewer divides the sixteen HD input to the same size and display on one screen. And now switch the input button on front panel or IR remote, the HDMI output audio will corresponding to the selected input source.

MODE4-16×1 Multi-Viewer
