4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output

1. Introduction

4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output;

This switcher is a suitable solution for presentation purpose at classroom and conference room.

2. Features

☆ HDMI 1.4b, HDCP 1.4 compliant;

☆ Input video resolution up to 1080p@60Hz, Output up to 4K2K@30Hz ☆ 9x HDMI inputs, 1x HDMI

and 1x de-embedded analog audio output ☆ Fast seamless switching with scaling up to 3840x2160p (4K);

☆ Supports 1/2/4/9 windows multi-view modes;

☆ Display 4x full HD signals within one 4K display with pixel-to-pixel quality;

☆ Control is via on-panel button, IR, RS-232, LAN or Web GUI;

☆ 1U rack mounted design;

☆ 4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output;

3. Specification

HDMI Compliance	HDMI 1.4b
HDCP Compliance	HDCP 1.4
Video Bandwidth	3Gbps
Video Resolutions	4K2K@30Hz YUV4:4:4,RGB4:4:4
Color Depth	8-bit
Color Space	RGB, YUV4:4:4, YUV 4:2:2
HDMI Audio	LPCM 2.0
Formats	LPCM 2.0
Formats
ESD Protection	Human-body Model:
ESD Protection	±8kV (Air-gap discharge) , ±4kV (Contact discharge)
	±8kV (Air-gap discharge) , ±4kV (Contact discharge)

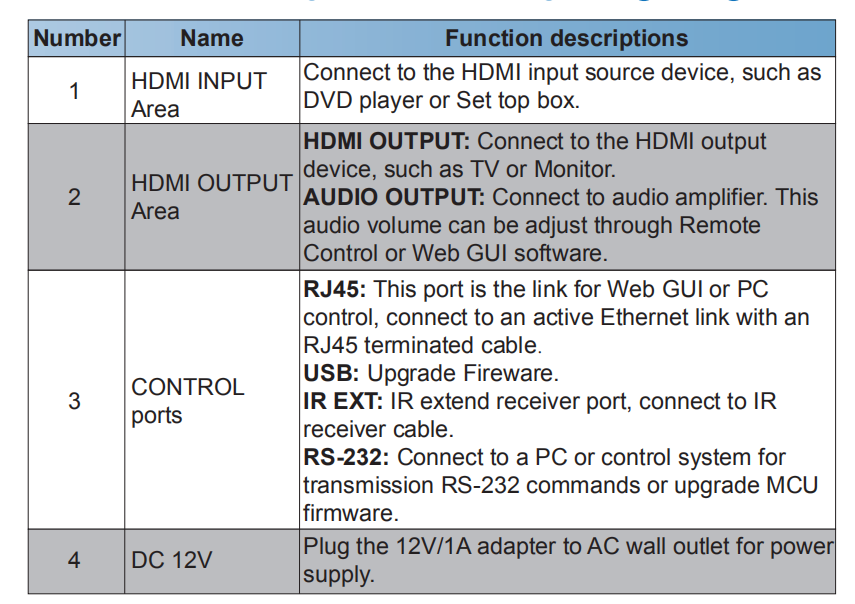

Connections
	9x HDMI Type A [19-pin female]
Inputs	1x RJ45 [8-pin female]
Inputs	1x RS-232 [Phoenix jack]
	1x RS-232 [Phoenix jack]
	1x USB [USB-A]
	1x IR EXT [3.5mm Stereo Mini-jack]

Outputs	1x HDMI Type A [19-pin female]
Outputs	1x Audio Out [3.5mm Stereo Mini-jack]
	1x Audio Out [3.5mm Stereo Mini-jack]
Mechanical
Housing	Metal Enclosure
Color	Black

Dimensions	440mm (W)×200mm (D)×44.5mm (H)
Weight	2.26kg
Power Supply	Input: AC100~240V 50/60Hz, Output: DC12V/1A
Power Supply	(US/EU standards, CE/FCC/UL certified)
	(US/EU standards, CE/FCC/UL certified)
Power	7.8W (max)
Consumption	7.8W (max)
Consumption
Operating	0°C ~ 40°C / 32°F ~ 104°F
Temperature	0°C ~ 40°C / 32°F ~ 104°F
Temperature
Storage	-20°C ~ 60°C / -4°F ~ 140°F
Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Temperature
Relative Humidity	20~90% RH (non-condensing)
Product name	4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output
