DC 5V 1A PIP HDMI 2x1 MultiViewer Female Type Input Output Ports
HDMI 2x1 MultiViewer With PIP
1. Introduction
This product is a high performance 2 by 1 Multi-Viewer. It supports
two High definition input source display on one screen.
As a Multi-Viewer, it can display on one screen in 4 modes.
2. Features
1. Compliant with HDMI 1.3a,HDCP 1.2；
2. Supports multiplexed HDMI 2-input and 1-output and 4 display
modes；
3. Supports up to 1080p High Definition resolution；
4. Support scaler up, scaler down function；
5. Support multi output resolution；
6. Support digital audio format LPCM/AC3/DTS
3. Package
4.Produicts' picture for HDMI 2x1 Multi-Viewer With PIP:
5. Specifications
1.Video Bandwidth 225MHz[6.75Gbps]
2.Input Ports 2 × HDMI (Female type)
3.Output Ports 1 × HDMI (Female type),
4.Audio output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1
5.Input Resolution
480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,1080i50/60Hz,
1080p24/30/50/60Hz,800x600@60,
1024x768@60,1280x720@60,1920x1080@60;
Output Resolution 1080p,1080i,720p,1024x768,1360x768
6.ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV
(contact discharge)
7. Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
8. Dimensions 70 mm (W)×140mm (D)×25 mm (H)
9. Weight 300 g
10. Chassis Material Metal
11. Silkscreen Color Black
12. Operating Temperature 0 °C~40 °C/ 32 °F~104 °F
13. Storage Temperature −20 °C ~ 60 °C/−4 °F ~140 °F
14. Relative Humidity 20~90 % RH (non-condensing)
15. Power Consumption (Max) 10W
6. Operation controls and Functions
Front Panel
- POWER LED: This red LED illuminates when the device is connected with power
supply.
- OUTPUT LED: This red LED illuminates when the TV plug in corresponding HDMI
output
Port.
- IN2 LED: This red LED illuminates when the HDMI IN2 is selected as main
image.
- IN1 LED: This red LED illuminates when the HDMI IN1 is selected as main
image.
- SOURCE: Press the button to select the input source as main image, and the
LED will indicate the corresponding input source.
- MODE: Press the button to select display mode. ※ See the description 1.
- POSITION: Press the button to select the position of sub image when in PIP
mode.
- SIZE: Press the button to select the size of sub image when in PIP mode.
- RESOLUTION: Press the button to select the output resolution.
| NO. | RESOLUTION |
| 1 | 1080P, Main image audio |
| 2 | 1080I, Main image audio |
| 3 | 720P, Main image audio |
| 4 | 1024x768, Main image audio |
| 5 | 1360x768, Main image audio |
Rear Panel
- SERVICE: Connected to computer via RS232 tool, and controlled via
host-computer software.
- HDMI IN1: This slot is where you connect the HDMI source output from DVD,
PS3.
- HDMI IN2: This slot is where you connect the HDMI source output from DVD,
PS3.
- HDMI OUTPUT: This slots is where you connect the HDTV or monitor with HDMI
cable.
- DC 5V IN: Plug the 5V DC power supply into the unit and connect the adapter
to AC wall outlet.

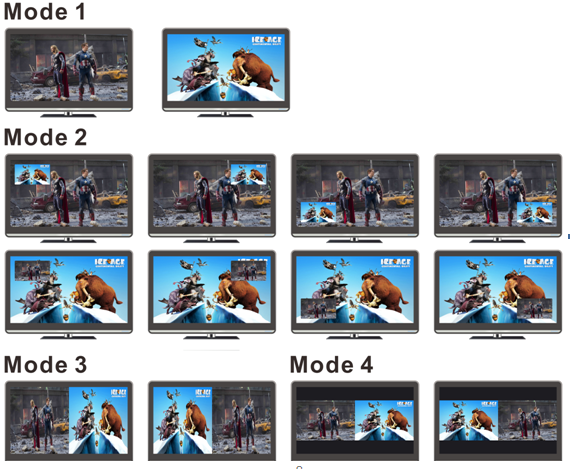

7. Description 1 Mode Introduction:
1. Mode 1: One-view mode
2. Mode 2: PIP mode
3. Mode3: POP mode A
4. Mode 4: POP mode B

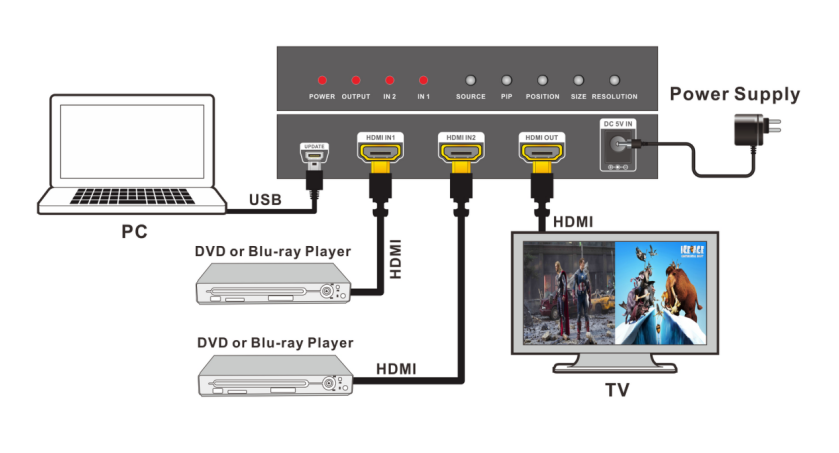

8. Application Example
