8X1 4k 60Hz HDMI Multiviewer HDCP 2.2 HDBaseT 70 Meters Output Port
1. Introduction
The 8X1 4k 60Hz HDMI Multiviewer HDCP 2.2 HDBaseT 70 Meters Output
Port supports 9 inputs including 3 HDMI ports, 1 VGA(YPbPr/CVBS) and 1
DisplayPort, scaling to HDMI and HDBaseToutputs (Mirrored). It
offers flexibility application of audio which includes unbalance
audio, MIC In and line out. The audio processor offers auto-mixer
and auto-gain control to mix or reduce background audio in order to
enhance major audio source. The system could be controlled and
configured easily via Telnet, WebGUI, IR remote and RS-232. This
switcher is a suitable solution for presentation purpose at
classroom and conference room.
2. Features
HDMI 2.0b, HDCP 2.2 compliant
3xHDMI, 1xVGA(YPbPr/CVBS), 1xDisplayPort, 1xMIC In, 4xunbalance
audio input
HDMIand HDBaseT(70M) outputs (Mirrored)
HDMI/DP video resolutions up to 4K2K@60Hz(4:4:4),4K2K@30Hz,
1080p@120Hz
VGA resolutions up to 1920x1200@60Hz
Output resolutions up to 4K2K@30Hz
Support automatic and manual switching modes
Supports EDID management
Supports pass-through of PCM 2CH
Touch Panel button,WebGUI, IR remote, Desk Plate and RS-232 control
3. Package Contents
1x5x1 4K60 Presentation Switcher
1 x HDBT Receiver
2 x Mounting ears
1 x Remote Control Unit
2 x IR Receiver Cable(with carrier wave)
2 x IR Emitter Cable
1x 24V/1A Power Adapter
1 x 3RCA(Female) to D-SUB(Male) Cable
1 x User Manual

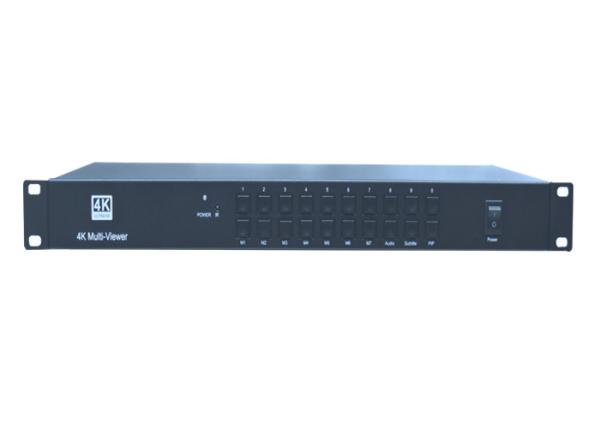

Pictures for 8X1 4k 60Hz HDMI Multiviewer HDCP 2.2 HDBaseT 70 Meters Output
Port；
4. Specifications
| Technical |
| HDMI Compliance | HDMI 2.0b |
| DP Compliance | DisplayPort 1.2a |
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 |
| Video Input Resolutions | HDMI/DisplayPort: up to 4K2K@50/60Hz(4:4:4) |
| CVBS: PAL/NTSC3.58/NTSC4.43/SECAM/PAL M/PAL N |
| YPBPR: 480i to1080p |
| VGA: 640x480/60 to1920x1200/60 |
HDMI/HDBT OutputResolutions | 4K2K/30,4K2K/25,1920x1080p60, 1920x1080p50, 1280x720p/60, 1280x720p/50, 1024x768/60,1280x800/60, 1360x768/60,1400x1050/60,1680x1050/60, 1920x1200/60 |
| Audio Formats | LPCM 2.0CH |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact
discharge) |
| Connections |
| Input ports | 3x HDMI Type A [19-pin female] 1x Display Port [female] 1x VGA [female] 1 x MIC input[3-pin phoenix port] 5x Stereo inputs [3-pin phoenix port] |
| Output ports | 1x HDMI Output Type A [19-pin female] 1x HDBaseT Out [RJ45] 1x Stereo Output [3-pin phoenix port] |
| Control interfaces | 1x IR in [3.5mm mini jack] 1x IR out [3.5mm mini jack] 1x CONTACT IN [6-pin phoenix port] 1x RS-232 [3-pin phoenix port 1x Web GUI [RJ45] 1x USB Type A [5-pin female] |
| Mechanical |
| Housing | Metal |
| Color | Black |
| Dimensions | 150mm [W] x 220mm [D] x 44mm [H] |
| Weight | 1250 [g] |
| Power Supply | DC 24V/1A Adaptor (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 9W [Main unit] 18W [Main unit + HDBaseT Receiver] |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
5. Operation Controls and Functions
1.1 Front Panel
❶ Power button and indicator:
When this device is switched to the standby mode by pressing power
button, theindicator will illuminate red.When switching to power on
mode, theindicator will illuminate blue.
❷IR Window:
Receiving IRsignal from remote control.
❸ Input Source buttons:
Press these buttons for source selection. The active source will be
illuminated to corresponding indicators on the front panel.
❹Operation buttons:
² Pressing“OK/MENU” button enters the OSD immediately. Then the
user can navigate using the 4-way arrow buttons. A new OSD setting
is confirmed by pressing “OK/MENU” button.
² Pressing"EXIT/AUTO" will exit OSD when OSD is displayed.
Press"EXIT/AUTO" for 5 seconds to auto switch on/off. When the
button LED light on, means auto switch on.
² Pressing “MIC-/+” buttondecreases or increasesMIC volume. Press
“VOL+/-“ button to increaseor decrease “Master volume”.
² Pressing “MIC-“ and “MIC+” buttons simultaneously will resets the
switcher HDMI/HDBT output resolution to 720P/60.
² Pressing “VOL-“ and “VOL+” buttons simultaneously will
lock/unlock the front panel, these two button LED will light on
when the front panel is lock on.
1.2 Rear Panel
❶
Control ports:
LAN: This port is the link for Web GUI control; connect to an active
Ethernet link with an RJ45 terminated cable.
RS-232: Serial control port, 3P captive screw connector, connects with a
control device (such as a computer) to control the switcher or
other device connected with the HDBT receiver.
IR IN: Connects with IR receiver cable (with carrier wave), to receive IR
signals sent by theIR remote or remote controller of other
input/output device.
IR OUT: Connects with IR emitter cable used for controlling the local
sourcedevice or the switcher.
CONTACT IN: This input control reserving for direct source input selection.
Connect ground pin (mark as
on panel) with following pin number for individual source
selection.
Pin number | Source |
Pin 1 | HDMI1 |
Pin 2 | HDMI2 |
Pin 3 | HDMI3 |
Pin 4 | Display Port |
Pin 5 | VGA/YPbPr/CVBS |
❷
Audio Ports:
OUT: The audio comes from the input audio corresponding to the selected
video source and mixed with MIC audio. Connects with amplifier for
audio source broadcasting.
EXT1/EXT2/EXT3/EXT4/EXT5: Select the external analog audio on OSD/WebGUI and insert the
audio to HDMI1/2/3/DP/VGA video source then output to display and
analog audio output port. The VGA Source select the EXT5 as default
audio input.
MIC IN: Plug microphone in for audio source output.
48V/MIC/Line :
❸48V phantom power mode (connects with phantom condenser
microphone), MIC mode (connects with dynamic microphone and
electrets condenser microphone) and LINE mode (connects with
wireless microphone or line audio input).
Output Ports
Input Ports
These video input ports include 3 HDMI inputs, 1 Display Port input
&1 VGA input. VGA port support VGA, YPbPr and CVBS format.
Factory default is VGA format.
❺USB Port
USB port connects with USB flash disk or other storage that
contains the software update file to update the system firmware.
❻Power:
Plug the 24V DC power supply into the unit and connect the adaptor
to an AC outlet.
6.Connection Diagram
Connect HDMI source devices (e.g. Blue-ray DVD) to HDMI input ports
of the switcher with HDMI cable. Connect VGA source device
(eg.PC/Note-book) to VGA input port of the switcher with a VGA
cable.
Connect HDMI display device to the HDMI output port of the switcher
with a HDMI cable.
Connect UTP Cable to the HDBT receiver.
Connect speaker, headphone or specialized amplifier to AUDIO output
port ofthe switcher.
Connect control device (e.g. PC) to RS-232 port of the switcher.
Connect DC24V power adaptor to the power port and power on.
