16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher

1. Introduction

The product can be controlled by various ways, through the front panel button control and RS-232 control etc.

16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher.

2. Features

1.Compliant with HDMI 1.3a,HDCP 1.2；
2,Supports multiplexed HDMI 16-input and 1-output；
3,Supports up to 1080p High Definition resolution；
4,Support 16 by 1 Quad Multi-viewer and seamless switch；
5.16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher

3. Specifications

Technical
Video Bandwidth	2.25Gbps
Input Ports	16 × HDMI (Female type),1x RS232
Output Ports	1 × HDMI (Female type),

Audio output	PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1

	480i60Hz,480p60Hz,576i50Hz,576p50Hz,720p50/60Hz,
Input Resolution	1080i50/60Hz,1080p 24/30/50/60Hz,800x600@60,
	1024x768@60,1280x720@60,1920x1080@60;

Output Resolution	1080p,1080i,720p,1024x768,1360x768

ESD Protection	±8kV (Air-gap discharge), ±4kV (Contact discharge)

Power Supply	12V/5A DC (US/EU standards, CE/FCC/UL certified)

Dimensions	440mm(W)×200mm(D)×45 mm(H)

Weight	1800g

Chassis Material	Metal

Silkscreen Color	Black
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity	20~90% RH (non-condensing)
Power Consumption	24W
Product name	16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher

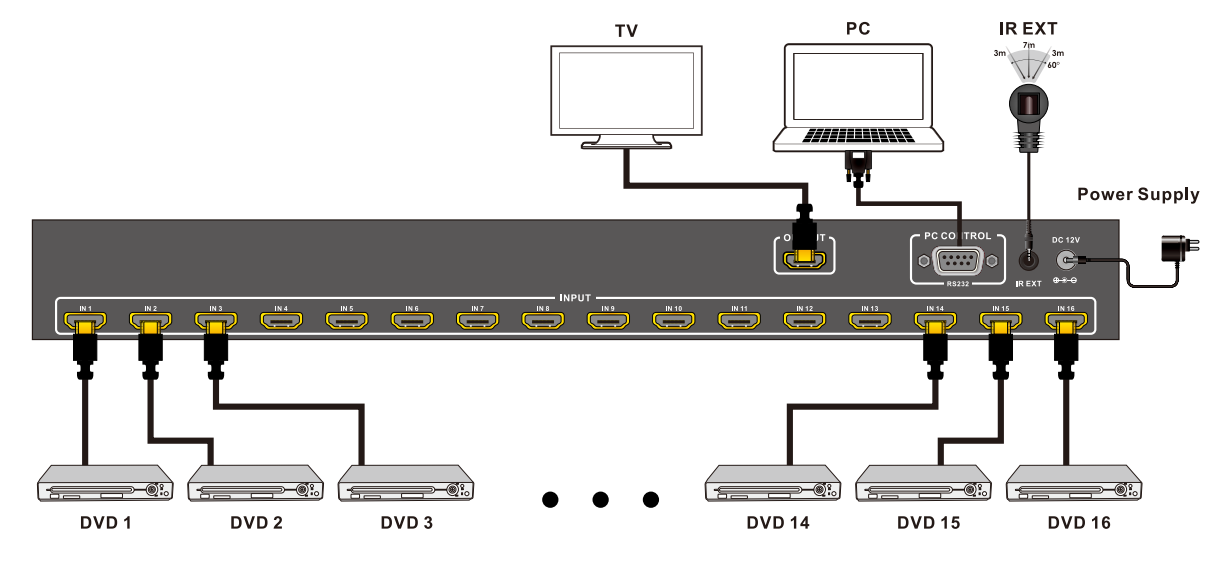

4. Application Example for 16 Input 1 Output 16 ports HDMI Multiviewer With Seamless Switcher .

Product Tags:

2.25Gbps HDMI Multiviewer
