HDMI Quad 4x1 Multiviewer Maximum 1920×1080P 60Hz Video Resolution
HDMI 4×1 Quad Multi-Viewer
1. Introduction
The high performance 4×1 quad multi-viewer supports four routes
HDMI high definition input contents be displayed on one HDMI screen
and one VGA screen simultaneously. It supports analog audio output
that can be selected different input source. Supports five
multi-view display modes. Output resolution can be adjusted and
supports the maximum up to 1920×1080@60Hz. The product can be
controlled via the front panel button and remote control.
2. Features
☆ HDMI 1.4, HDCP 1.4 compliant
☆ Input resolution can automate recognition.
(480i~1080P60,800x600~1920x1080)
☆ Output resolution can be selected by on-panel button and remote
control, the maximum up to 1080P@60Hz (1920x1080P@60Hz,
1280x720P@60Hz)
☆ Audio supports LPCM 2CH
☆ Supports 1/2/4 windows multi-view modes
☆ Control is via on-panel button and remote control
3. Package Contents
① 1× HDMI 4×1 Quad Multi-Viewer
② 1× 12V/1A DC Power Adapter
③ 1× Remote Control
④ 2× Mounting Ears
⑤ 1× User Manual
As below are pictures for HDMI 4×1 Quad Multi-Viewer.
4. Specifications
Technical |
HDMI Compliance | HDMI 1.4 |
HDCP Compliance | HDCP 1.4 |
Video Bandwidth | 4.95Gbps |
Video Resolutions | the maximum up to 1920×1080P@60Hz |
Color Depth | 8-bit |
Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
Analog Audio Formats | LPCM2.0 44.1KHz 48KHz |
ESD Protection | Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
Connections |
Inputs ports | 4x HDMI Type A [19-pin female] 1x SEVICER [Micro USB, Update port] |
Outputs ports | 1x HDMI Type A [19-pin female] 1x VGA [VGA-D] 1x Audio [3.5mm Stereo Mini-jack] |
Mechanical |
Housing | Metal Enclosure |
Color | Black |
Dimensions | 185mm (W)×111.8mm (D)×21mm (H) |
Weight | 500g |
Power Supply | Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified) |
Power Consumption | 5.28W (max) |
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
Relative Humidity | 20~90% RH (non-condensing) |
5. Operation Controls and Functions
5.1 Front Panel
Number | Name | Function description |
1 | POWER LED | The LED will illuminate green when the unit is working, red when the unit is in standby mode. |
2 | IR | IR receiver window. It accepts the remote control signal of this
device only. |
3 | CH1/CH2/CH3/CH4 button | Select input channel button (Please see “6. Display Modes” detail
description). |
4 | MODE button | Press this button to cyclical selection display mode output (Please
see “6. Display Modes” detail description). Press this button up to
5s, the output screen is full screen and equal proportion display. |
5 | RESO | Cycling select different output resolution. Press this button up to
5s to opening or closing window display frame. |
6 | SERVICE port | Fireware update used. (Manufacture use only.) |

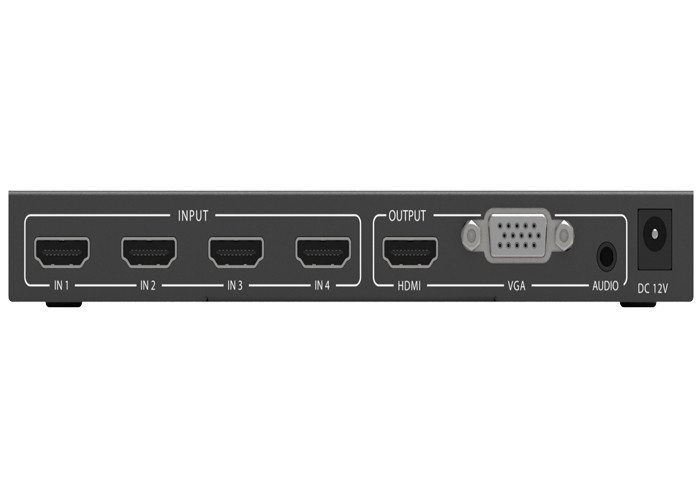

5.2 Rear Panel
Number | Name | Function description |
1 | HDMI INPUT | Connect to HDMI source device such as DVD player or PS4. |
2 | HDMI OUTPUT | Connect to HDMI display device such as TV or projector. |
3 | VGA OUTPUT | VGA output port, this port output signal is the same as the HDMI
output port. |
4 | AUDIO OUTPUT | Analog audio output port. (Note: If the HDMI output is MODE 1, the
audio output follows the video content. If the HDMI output is MODE
2/3/4/5, press CH1/CH2/CH3/CH4 up to 5s to selecting audio output
or using remote control to cyclical selection audio output. The
default status is CH1 screen audio output.) |
5 | DC 12V | Plug the 12V/1A DC power supply into the unit and connected the
adapter to an AC outlet. |

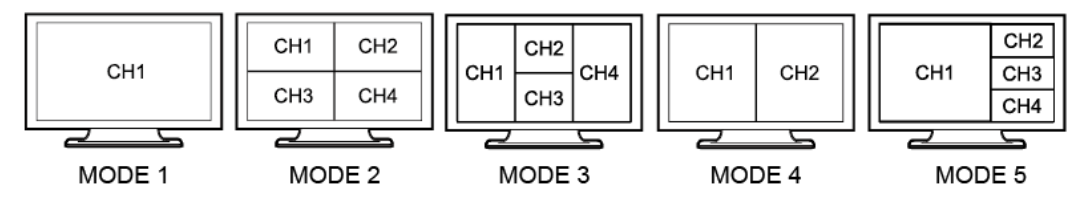

6. Display Modes
The quad multi-viewer has 5 display modes. Please see the below
detail description.
MODE 1: The quad multi-viewer will display separately four HDMI inputs.
Press the CH1/CH2/CH3/CH4 buttons on-panel or using IR remote
control the Source 1/2/3/4 buttons to selecting input source,
corresponding on-panel light is on.
MODE 2: The quad multi-viewer divides four HD inputs with same size and
display on a screen. The on-panel four lights is on. In the CH1
window, you can press the CH1 button on-panel or using IR remote
control the Source 1 button to cyclical selection four inputs
source. In the CH2 window, you can press the CH2 button on-panel or
using IR remote control the Source 2 button to cyclical selection
four inputs source...etc.
The rest can be done in the same manner.
MODE 3: The quad multi-viewer divides four HD inputs and display on a
screen. The on-panel four lights is on. Operation method is the
same as MODE 2.
MODE 4: The quad multi-viewer divides two HD inputs with same size and
display on a screen. The on-panel CH1/CH2 lights is on. In the CH1
window, you can press the CH1 button on-panel or using IR remote
control the Source 1 button to cyclical selection four inputs
source. On the CH2 window, you can press the CH2 button on-panel or
using IR remote control the Source 2 button to cyclical selection
four inputs source.
MODE 5: The quad multi-viewer divides four HD inputs and display on a
screen. The on-panel four lights is on. Operation method is the
same as MODE 2.

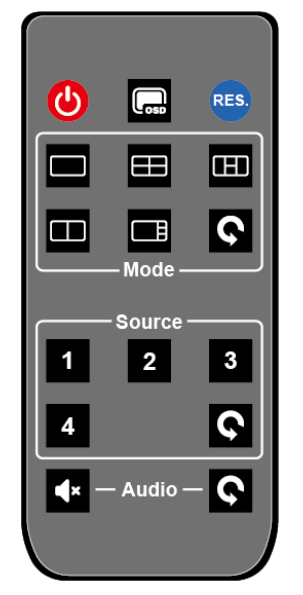

7. Remote Control
: Press this button to setting standby mode, press this button
again to power on the unit.
: Press this button to opening or closing display window frame.
RES. : Press this button to cyclical selection output resolution.
Mode:
: Press these buttons to
selecting output display mode.
8. Application Example
