10.1" Industrial Touch Screen Computer With Windows System
1. Introduction:
Android Panel PC adopts the whole aluminum alloy structure, fanless
fully enclosed design, low power consumption,
compact appearance, is specially designed for a variety of
environmental and industrial products, can guarantee in
harsh environments work stably for a long time, we pay more
attention to the materials of the machine on its reliability,
environmental adaptability, real-time performance, scalability,
performance and EMC compatibility,The configuration
uses an Allwinner A64 Cortex-A53 quad-core 64-bit CPU with
Android6.0, and the main frequency is up to 1.5GHz,
match hd display interface and multiple COM interface, USB
interface, Industrial Touch Screen Computer With Windows
System is widely used in industrial control, military industry,
communication, electric power, network and other high-end
automation fields.
2. Datasheet :
| Main parameters | Size | 10.1” |
| Resolution | 1280*800 |
| View Angel | 85/85/85/85 (L/R/U/D) |
| Color | Chrominance :16.7M |
| luminance | luminance:300cd/m2 |
| Contrast | 600:1 |
| ms | 30ms |
| Display area | 135.36(H) X216.576(V) mm |
| Pixel pitch(mm) | 0.1692(H) X 0.1692(V) |
| | |
| Touch Screen | Touch type | Capacitive touch screen |
| DPI | 500DPI |
| Input mode | Handwritten or capacitive pen |
| Surface hardness | 7H |
| Calibration | support |
| | |
| Hardware | CPU | Allwinner A64 Cortex-A53 quad-core 64-bit CPU , main frequency
1.5GHz |
| GPU | Mali400MP2 |
| RAM | 2G(DDR3) |
| Memory | EMMC 8G |
| OS | Android 6.0 |
| 3G module | PCI-E standard interface for Mobile, Unicom, Telecom (optional) |
| 4G module | PCI-E standard interface for Mobile, Unicom, Telecom (optional) |
| WiFi | 2.4G |
| BT | BT4.0 |
| GPS | optional |
| MIC | optional |
| RTC | Support |
| Time-power-off | Support |
system upgrade
| Support local SD,USB upgrade |
| | |
| Interface | DC port | 1*DC 2.0 |
| HDMI | 1*HDMI data output,Max support 1080P |
| USB-OTG | 1 |
| USB-HOST | 2*USB2.0 |
| RJ45 | 1*10M/100M/1000M adaptive Ethernet |
| SD/TF | - TF data storage, up to 32G support
|
| Headphone socket | 3.5mm standard interface |
| SMIcard | SIM card interface Standard interface supports various formats
(depending on 3G/4G modules) |
| RS232 | 2*RS232 |
| RS485 | optional |
| RS422 | optional |
| GPIO | optional |
| | |
| Product reliability | Working Temperature | -10 °C to 60 °C |
| Storage temperature | -20 °C to 70 °C |
| Humidity | Humidity: 95% Non-Condensing |
| MTBF | 7*24H |
| | |
| Power supply | Power dissipation (MAX) | 18W |
Power dissipation(Standby) | |
| Power input | AC 100-240V 50/60Hz has passed CCC and CE certification |
| Power output | DC12V / 4A |
| Product name | Industrial Touch Screen Computer With Windows System |
3. The installation of the 10.1" Industrial Touch Screen Computer
With Windows System :

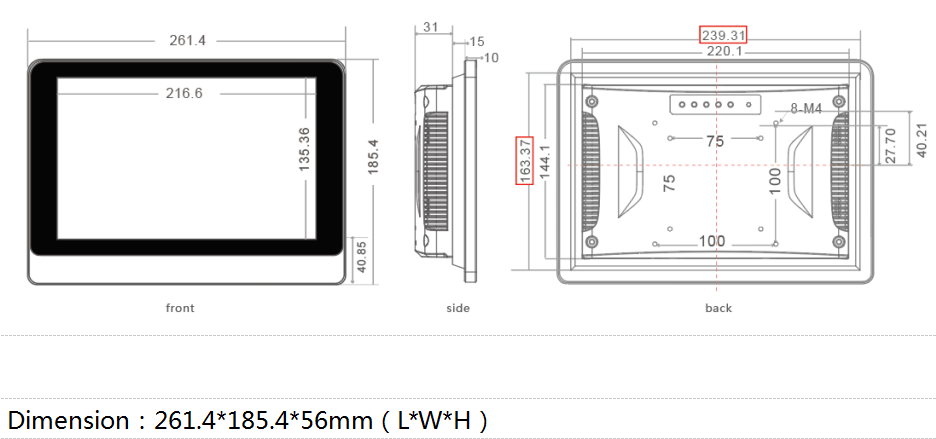

4. The dimensions of the 10.1" Industrial Touch Screen Computer
With Windows System
