MPEG4 HDMI Video Encoder

Ask Lasest Price
Brand Name :	VINCAN
Model Number :	WL-HD-HE
Certification :	CE,FCC and RoHs
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	100 pcs per week
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

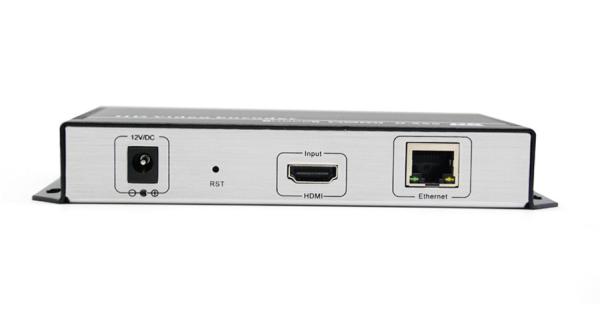

MPEG4 HDMI Video Encoder

MPEG4 HDMI Video Encoder

MPEG4 HDMI Video IP Encoder IPTV H.265 RTSP RTMP SRT Live Encoder For IPTV Live Broadcast Twitch Youtube Facebook

Description:

MPEG4 HDMI Video IP Encoder IPTV H.265 RTSP RTMP SRT Live Encoder for IPTV Live Broadcast Twitch Youtube Facebook is a HD audio and video encoding device with powerful functionality.It supports HDMI(audio build-in) and external stereo audio(3.5mm jack) input, H.265 /H.264 video encoding and AAC /MP3 /MP2 /AC3 /G.711 audio encoding, 4 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol.Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

If you inputexternal audio,you canchoose HDMI embedded audio or external audio as output audio. We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.

Features :

● High-performance hardware encoding
● support H.265 video coding efficiency
● support H.264 BP/MP/HP
● support AAC / G.711 Advanced Audio Coding format quality
● CBR / VBR rate: 16Kbps ~ 12Mbps
● 1000M network interface uses full duplex mode
● mainstream and secondary stream can be pushed to different server
● Supports up to 720P, 1080P @ 60HZ HD video input
● Support image parameter settings
● support HDCP protocol and Blu-ray
● support HTTP, UTP, RTSP, RTMP, RTP, ONVIF protocol
● the mainstream and side stream use the different network protocol for transmission
● WEB interface, English and Chinese is optional for configuration interface
● WEB interface management authority
● Support remote management in WAN(WEB)
● Support resolution customized settings
● Support one key to restore the factory configuration
● Support SDK , secondary development

Parameter :

Video
Input	HDMI(Support HDCP)
Input Resolution	Max 1080P or 1080i resolution, Max 60fps frame rate
Encoding Type	HEVC /H.265 and H.264 /AVC and MJPEG for selection
Encoding Levels	H.265 main profile; H.264 high /main /baseline profile
Video Bitrate	Adjustable from 32kbit /s to 32mbit /s
Bitrate Control	CBR or VBR or Strong CBR for selection
Output Resolution	It is adjustable, max 1920x1080P /60fps
Video Pre-processing	De-interlacing, noise reducing and sharpening
Audio
Input	HDMI embedded audioorexternal stereo audio(3.5mm jack)
Audio Encoding	AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Sampling Rate	44.1KHz, 48KHz
Bitrate Control	Adjustable from 48000~320000
Sampling Accuracy	24bit
ONVIF	G.711
Network
Interface	Ethernet port(1000 BASE-T)
Streaming Protocol	NDI, SRT, HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc
Control Panel	Webpage control panel(language customizable)
Firmware Upgrade	Firmware is upgradeable
General
Dimension (W x L x H)	130 x 105 x 30 /mm
Net Weight	0.3kg
Temperature	0 to 45(For working), -20 to 80(For storing)
Input Voltage	DC 12V /2A
Power Consumption	5w

Diagram:
