9X1 4K2K 60Hz Presentation Switcher With HDMI Output Port

1. Introduction

The Multi-inputs with HDMI output scaler box supports 9 inputs of 4xHDMI and 1xVGA(YPbPr,CVBS).
The input source is capable to switch and scale to adopt resolution then transmit over HDMI output.
The HDTV resolution is achievable. The system could be controlled and configure by easily operation of panel button,
IR remote and RS-232. This scaler box is a suitable solution for presentation purpose at classroom and conference room.

2. Features

• Compliant with HDMI2.0/1.4b, HDCP2.2/1.4;

• Support multi inputs: 4 x HDMI, 1 x VGA ( YPbPr, CVBS);

• Support HDMI input resolutions up to 4K UHD 4:4:4 @50/60;

• Support output resolutions up to 4K UHD 4:4:4 @60;

• Support two input switching modes: auto or manual;

• Support EDID management;

• Support pass-through of PCM 2CH;

• Device could be controlled via touch panel button, IR remote and RS-232;

• Support USB online software upgrading;

3. Package Contents

• 1xMulti-format Scaler Switcher

• 2xMounting ears

• 1xRemote Control Unit

• 1xIR Receiver Cable.

• 1x12V/1A Power Adapter

• 1x 3RCA(Female) to D-SUB(Male) Cable

• 1x3.5mm jack(Male) to 2RCA(Female) Cable

• 1xUser Manual

• As below is pictures for 9X1 4K2K 60Hz Presentation Switcher With HDMI Output Port

4. Specifications

5. Operation Controls and Functions

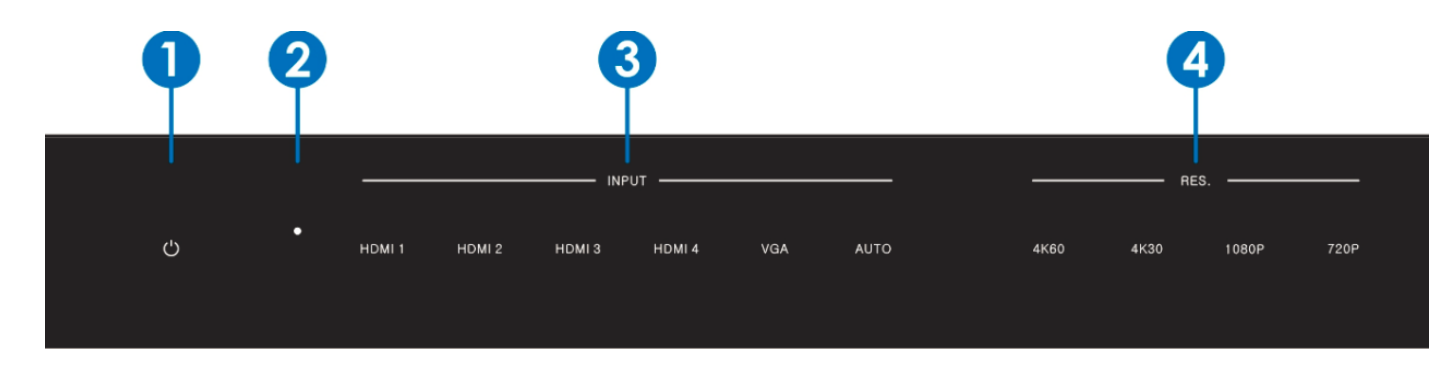

1.1 Front Panel

❶Power button and indicator:

Switches between standby and work mode. When this device is switched to the standby mode, the indicator turns red. When switching to work mode, the indicator turns blue.
❷ IR Window:
Receiving IR signal from remote control unit which come with scaler switcher.

❸Input Source & Auto buttons:

Press these buttons for source selection. The active source will be light to corresponding indicators on the front panel. AUTO button for auto-switching or manual-switching mode, when the indicator turns blue, the device switch to auto-switching mode, when the indicator turns off, the device switch to manual-switching mode.
❹Output Resolution buttons:
Press these buttons for output resolutions selection. Select between 4K60,4K30,

1080P60,720P60; for more other resolutions options, Please use remote control or

RS-232 control tools.

1.2 Rear Panel

❶Output:
Connect to an HDMI display or AV Receiver for video and audio output.Connect the
L/R stereo audio output to the analog audio input port of your amplifier.
❷Input:

The input ports include 4 HDMI & 1 VGA input ports. The VGA ports supports

YPbPr, C-video and VGA input formats.

❸Control:

USB
USB port connects with USB flash disk or other storage that contains the software
update file to update the system firmware.

RS232
Serial control port, 3p captive screw connector, connects with a control device (such
as a computer) to control the scaler switcher.

IR
Connects with IR receiver, to receive IR signals sent by the IR remote or remote

controller of other device.

❹Power:

Plug the 12V DC power supply into the unit and connect the adaptor to an AC outlet.

❺ON/OFF:

Power ON/OFF switch.

• ❶Press this button to power on the scaler switcher or set it to standby mode.

• ❷Press this button for mute or unmute the audio output.

• ❸Press this button for operate VGA input auto adjustment function;

• ❹Press these buttons for select the input sources.

• ❺Press this button for select HDMI output resolution. (Press and hold 5 seconds or more, the HDMI output resolution will reset to 720p60Hz.)

• ❻Menu operation buttons:
  MENU: press to enter in OSD menu.

EXIT: press to exit OSD menu.
OK: confirm button.

UP/DWON/LEFT/RIGHT button: for OSD value setting.

• ❼VOL-/+:decrease or increase audio volume, MIC-/+: Unused.

6.Connection Diagram
