1 IN 4 OUT 4K HDMI 1.4 Processor 2X2 1X2 2X1 1X3 3X1 1X4 4X1 Modes

4K 1 IN 4 OUT video wall processor

1. Overview

TV splicer supports 4K_ 30Hz (3840X2160) signal, The following output splicing modes can be set:

4-Channel model:2X2, 1X2, 2X1, 1X3, 3X1, 1X4, 4X1.

8-Channel model: 2X3, 3X2, 2X4, 4X2, 1X5, 5X1, 1X6, 6X1.

12-Channel model: 3X3, 2X5, 5X2, 3X4, 4X3, 3X4, 2X6, 6X2.

16-Channel model: 2X7, 7X2, 8X2, 2X8, 4X4.

2. Dimension(Unit: mm)

4- Channel model size

6- Channel/8- Channel/10- Channel/12- Channel model size

3. Specification

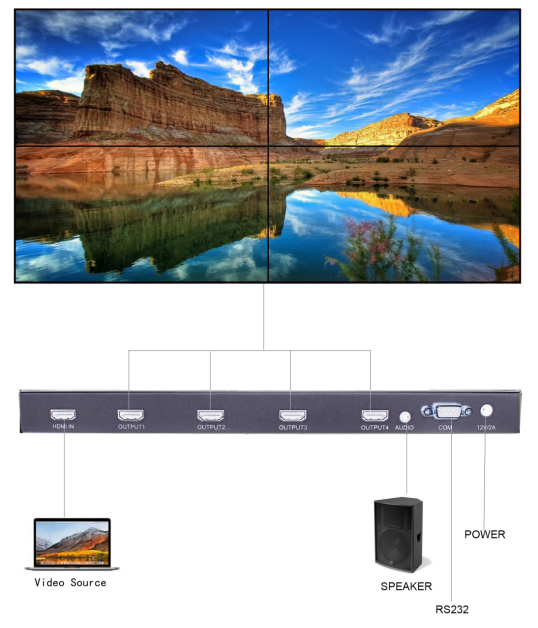

4. System Topology
