1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication

Ask Lasest Price
Brand Name :	VINCAN
Model Number :	WL-TW16
Certification :	CE ,FCC ,RoHs
Price :	Negotiable
Payment Terms :	T/T,Western Union, MoneyGram,
Supply Ability :	1000 sets per week
Delivery Time :	2-3 days

Add to Cart

Product Details
Company Profile

1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication

1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication
1.Overview

This 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication is for LCD TV, ultra narrow side LCD screen, projector and so on,high-definition picture mosaic processor can be customized according to user needs 2 to 4 HDMI output splicing. Products with high definition processing chip, support 1080P signal input and output, supports 1 composite video, 1 VGA, 1 USB model, 1 HDMI input, all input signals can be switched to the large screen display, and audio and video synchronization output.

2.Specification

Item	Specification
HDMI input
Interface	HDMI(support HDCP1.3 and DVI1.0)
Resolution	Up to 1920*1080@60Hz
Color	24bit,16.77M
DVI input
Interface	DVI(support DVI1.0)
Resolution	Up to 1920*1080@60Hz
Color	24bit,16.77M
VGA input
Interface	DB15
Resolution	800600 to 19201080@60Hz
AV input
Interface	RCA
Identification	Auto
Standard	PAL,NTSC
USB
Video	RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution up to 1080P
Audio	MP3,WMA,FLAC and so on
Picture	JPG,BMP,PNG
Text	TXT
Audio in	Fit for VGA video
Audio output	Fit for output video
HDMI output	*1024768@60hz,720P@60Hz,1080P@60Hz**
Controller	Remote, button key, RS232 serial port

Prodcut name

1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication

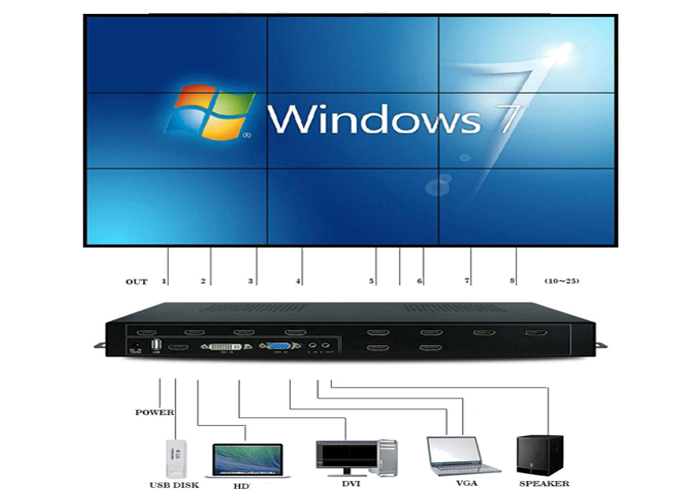

3.System Topology

4.Remote controller for 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication :

5.Dimension of the 1 In 6 Out HDMI Video Wall Controller 2x3 2x2 matrix multiplication :

TV BOX 0106 0109 0110
