4K 60HZ LCD Video Wall Controller 4 HDMI Signal Input 16 Output
4 Input 16 Output 4K HDMI Matrix & Video Wall Controller
integrated processor Introduction:
The productis a multifunctional 4K matrix-splicing integrated
processor, Its main function is to realize free switching between
conventional
4K video wall controller and matrix, achieving the effect of one
machine with dual use. It is not only a 16-channel 4K video wall
controller,
but also a 4-in 16-out matrix switcher. The product supports 4
channels of 4K HDMI signal input, and supports up to 16 channels of
HDMI signal output.
MxN output is supported in splicing mode, and 4 4K input signals
can be switched freely. All input signals can be switched to the
large screen for splicing display, and audio and corresponding
video are output synchronously. In matrix mode, it supports
arbitrary switching of input and output, supports seamless
switching function, and realizes fast switching without black
screen. The matrix also supports 4-screen preview function, which
displays 4 inputs on one display at the same time.
With superior functions, the product is suitable for various video
surveillance projects, large-scale splicing projects, exhibition
halls, control centers, etc.
Features:
*** Support 4 HDMI inputs, 2 HDMI2.0, 2 HDMI1.4, up to 4K60HZ,
backward compatibility;
*** Supports up to 16 outputs, the output resolution supports
1024*768@60HZ, 1280*800@60HZ, 1280*720@60HZ, 1920*1080@60HZ,
1920*1200@60HZ (splicing), the output resolution can be switched;
*** Card-type splicing and matrix all-in-one machine, one key to
realize free switching;
*** Splicing mode supports custom MxN splicing;
*** Support the 180-degree rotation function of any display unit
image, and support the upper LCD screen to reverse;
*** Edge shielding function, splicing mode supports horizontal and
vertical splicing adjustment;
*** Matrix mode supports seamless switching function;
*** Matrix mode supports any output 4 screen split display;
*** Support remote control, RS232, TCP-IP (customized), chassis button
control;
*** Standard 3U chassis, can be directly installed in the standard
cabinet;
Specification :
1, Input and output signal
Support 4 HDMI signal input, the input signal can be switched
through the chassis buttons and remote control, the highest
resolution supports 4K@60HZ;
It supports up to 16 HDMI signal output, and the output resolution
supports 1920x1080@60HZ, 1024*768@60HZ, 1280*800@60HZ,
1280*720@60HZ, 1920*1080@60HZ, 1920*1200@60HZ, which can be
switched freely.
2, Matrix-splicing function integrated
The product integrates the functions of matrix and splicing. It can
be used as a conventional 16-channel video wall controller or a
4-input and multiple-output matrix switcher. The user can freely
switch to the desired mode through the remote control or the
chassis buttons.
3, Matrix function
The product matrix function is a 4-input multiple-output matrix,
with the free switching function of the conventional matrix, which
can realize the arbitrary switching of input and output, and also
has the preview function, which can display 4 input signals on a
display screen. In addition, The matrix also has the function of
seamless switching, no delay when switching, no black screen,
simple and fast operation.
4, Splicing function
The splicing function of the product adopts a modular design
method. The output modules can be added or reduced according to
user needs. A single machine can achieve a maximum of 16 HDMI
signal splicing outputs. According to user needs, a single machine
can be customized 2x2, 3x3, 1x2, 2x3, Various splicing modes such
as 3x2, 2x4, 4x2, 2x5, 5x2, etc.
5, Infrared remote control
The remote control can be used to set any splicing mode or
arbitrary switching of input and output in matrix mode, which is
simple and convenient.
6, Chassis button control
Through the chassis control, you can quickly switch the matrix mode
or the splicing mode; you can set any splicing mode, or realize the
arbitrary switching of the input and output of the matrix mode.
7, Host computer control
Connecting the host computer software through the serial port, you
can set any splicing mode or arbitrary switching of input and
output in the matrix mode with one key.
8, Central control
The The productmatrix-splicing all-in-one machine opens the
commonly used control codes. Users can write the control codes into
the central control system according to their needs, and use the
central control for centralized control;
| Item | Specification |
| HDMI input | |
| Interface | HDMI(support HDCP1.3 and DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| DVI input | |
| Interface | DVI(support DVI1.0) |
| Resolution | Up to 1920*1080@60Hz |
| Color | 24bit,16.77M |
| VGA input | |
| Interface | DB15 |
| Resolution | 800*600 to 1920*1080@60Hz |
| AV input | |
| Interface | RCA |
| Identification | Auto |
| Standard | PAL,NTSC |
| USB | |
| Video | RM,RMVB,AVI,WMV,MOV,MP4,FLV,MPG,DAT,MPEG and so on, the resolution
up to 1080P |
| Audio | MP3,WMA,FLAC and so on |
| Picture | JPG,BMP,PNG |
| Text | TXT |
| Audio in | Fit for VGA video |
| Audio output | Fit for output video |
| HDMI output | 1024*768@60hz,720P@60Hz,1080P@60Hz |
| Controller | Remote, button key, RS232 serial port |
| Power | Input:DC 12V 3A |
| Dimension (package) | 4 Port: 340mm(L)x200mm(W)x60mm(H) 5~10 Port: 420mm(L)x243mm(W)x60mm(H) |
| Weight | 4 port: 1.6 Kg 5~10 port: 2.5 KG |

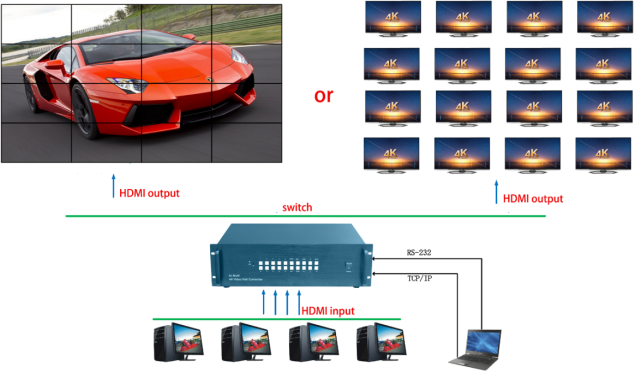

Product topology
