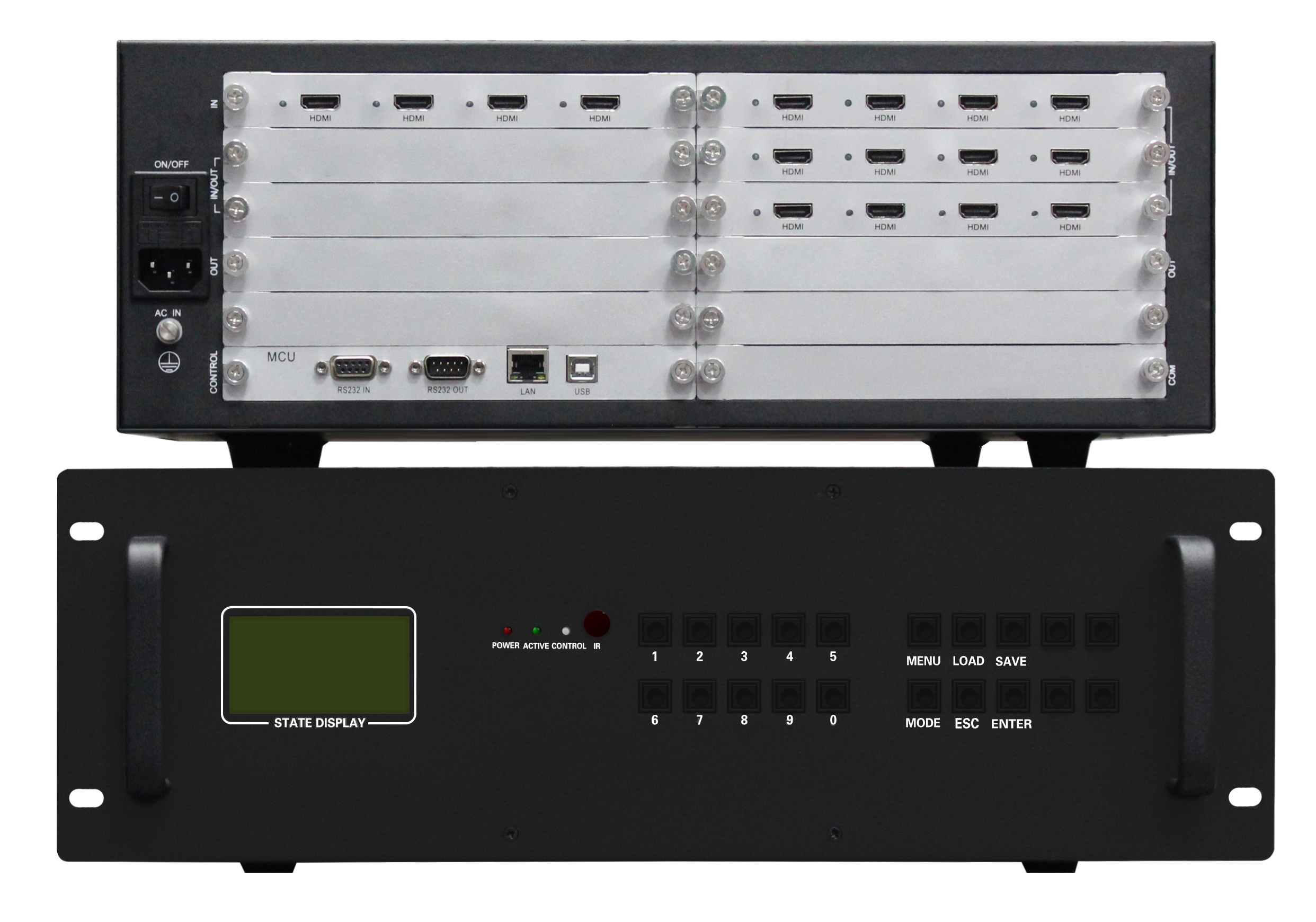

HDBaseT HDMI Video Wall Processor 4x4 4x3 3x4 2x4 16 Input 16 Output

16 Input 16 Output HDBaseT Modular Video Wall Controller With 4x4 ,4x3 ,3x4 ,2x4

Technical Parameters

Description :	Up to sixteen video windows per display channel (Optional)
Inputs (Optional) :	DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video
Input resolution :	XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution
Output Signal :	DVI/VGA output
Output resolution :	1920*1200/60HZ (compatible with standard resolution )
system control software :	Application Pro dedicated control software
Power :	: Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power
consumption :	12w per channel
working temperature :	-20℃——60℃
working humidity :	5-95%
Chassis size :	5U/7U/15U standard rackmount chassis
Serial port :	RS-232, 9 pin, D-type connector
Baud rate :	115200

Serial port architecture :	2=TX,3=RX,5=GND
Ethernet control port :	RJ-45 female ports, TCP/IP protocol
Ethernet control speed :	Self-adaptive 10M or 100M, full duplex or half duplex
Working hours :	7 days x 24 hours
