Hdmi 2x2 3x4 2x6 2x5 LCD Video Wall Matrix Controller With RS232 Control For 12 TV Splicing

1.Product introduction:

Hdmi 2x2 3x4 2x6 2x5 LCD Video Wall Matrix Controller With RS232 Control also supports

HDMI/VGA/CVBS/USB input sources to be freely arranged on 12 HDMI displays.

The embedded scaler converts any formats input signal to match the native resolution of monitors,

flat panel displays, projectors as well as user-selectable output settings up to 1080P @ 60Hz.

It supports up to 16 kinds of combination modes. Flexible control through on-panel buttons,

IR remote control, RS-232 or Ethernet protocol.

2.Product features:

• Displays source signal on the 12 displays(3x4 video wall) as a full screen with adjustable bezel correction

• HDMI loop out port for easy cascade application

• Supports High Definition resolutions up to 1080P@60Hz

• Output resolution supports 1080p,720p,1024x768,1360x768

• Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)

• Independent audio output through coaxial and analog audio

• Supports IR extension

• Flexible control through on-panel buttons, IR remote control, RS-232 or Ethernet protocol for Hdmi 2x2 3x4 2x6 2x5

LCD Video Wall Matrix Controller With RS232 Control

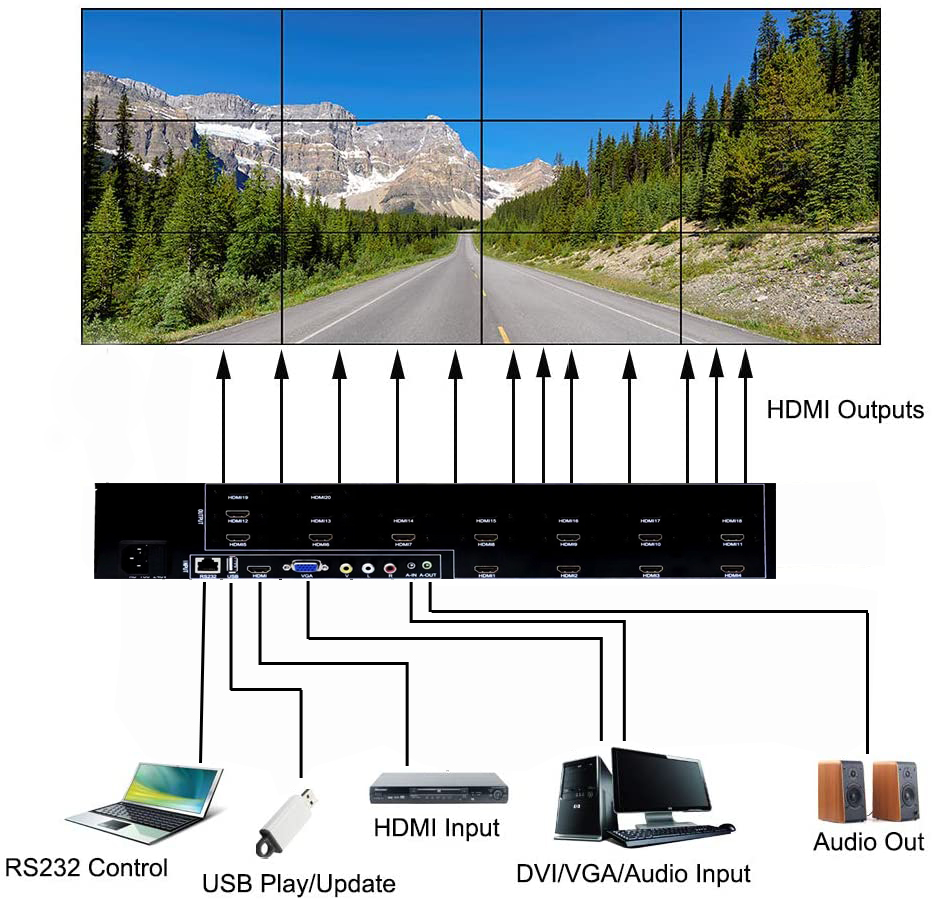

3.System Topology for Hdmi 2x2 3x4 2x6 2x5 LCD Video Wall Matrix Controller With RS232 Control
