PRODUCT OVERVIEW:

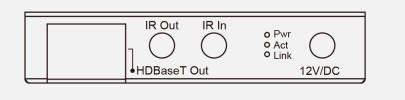

Transmitter:
① HDBaseT OUT: Connect to the Receiver unit with a single CAT5e/6/7
cable for transmission of all data signals includes power.
(2) IR OUTConnect to the IR Blaster to transmit IR signals to
devices within direct line-of-sight of the IR Blaster.
⑶ IR IN:Connect to the IR Extender to extend the IR control range of
remotely located device. Ensure that the remote being used is
within direct line-of-sight of the IR Extender.
④ HDBaseT Active LED:This LED will flicker per second when device
power on.
⑤ HDBaseT Link LED: This LED will illuminate when HDBaseT link is
established between transmitter and receiver.
① HDMI IN: Connects to HDMI source equipment such as a DVD or Blu-ray
player.
② RS232:Connect to a PC or Laptop via RS232 terminal to D-Sub 9-pin
cable for the transmission of RS-232 commands.
(3) HDCP LED:This LED will flicker when device has no HDCP, always
illuminate when device has HDCP.
Receiver:
①HDBaseT IN: Connect to the Receiver unit with a single CAT5e/6/7
cable for transmission of all data signals includes power.
② IR OUTConnect to the IR Blaster to transmit IR signals to devices
within direct line-of-sight of the IR Blaster.
③ IR IN:Connect to the IR Extender to extend the IR control range
of remotely located device. Ensure that the remote being used is
within direct line-of-sight of the IR Extender.
④ HDBaseT Active LED:This LED will flicker per second when device
power on.
⑤HDBaseT Link LED:This LED will illuminate when HDBaseT link is
established between transmitter and receiver.
⑥DC 12V:Plug the 12V DC power supply into the unit and connect the
adaptor to an AC outlet.
① HDMI OUT: Connects to HDMI source equipment such as a DVD or
Blu-ray player.
② RS232:Connect to a PC or Laptop via RS232 terminal to D-Sub 9-pin
cable for the transmission of RS-232 commands.
③ HDCP LED:This LED will flicker when device has no HDCP, always
illuminate when device has HDCP.
Production Specifications
| Function | Number of input signal | Transmitter:6-CH(DVI,HDMI,IR,Remote switch) |
| Number of output signal | Receiver:1CH(DVI,HDMI,IR,Remote switch) |
| Transmission distance | WLHDB-USB70:0-70m WLHDB-USB100:0-100m |
| Video transmission performance | Video input interface | HDMI and DVI-I (only support DVI-D signal) |
| Video output interface | HDMI and DVI-I (only support DVI-D signal) |
| Resolution | 1080p/1080i/720p/720i/576p/576i/480p/480i maximum support 4K×2K |
| Maximum Transfer Rate | 10Gbps |
| IR | Remote-control interface | 3.5mm audio port |
| Remote-control interface | IR remote control signal |
| USB | Protocol | Only support USB keyboard and mouse |
| Power supply | Voltage range | Input:AC110V-220V,50/60HZ Output:DC9V/1A |
| Power consumption | Transmitter:5W Receiver:5W |
| Appearance attribute | Size (L×W×H) | Transmitter: 112.4mm×78.9mm×27.9mm Receiver: 112.4mm×78.9mm×27.9mm |
| Material | Steel casing |
| Color | Black |
| Operating environment | Storage temperature | -40-80℃ |
| Relative humidity | 0-95% (No condensation) |
| Working Temperature | -15℃-55℃ |
| Product name | Ultra Slim 4K HDMI via HDBaseT 70 Meter Exender with 6 HDBaseT
output ports |
Using application diagram:
Ultra Slim 4K HDMI via HDBaseT 70 Meter Exender with 6 HDBaseT
output ports
