18Gbps 4x4 Seamless IR Audio UHD HDMI2.0 Matrix With 4K@60Hz 4:4:4

1.Package Contents

①1 x 4x4 seamless UHD Matrix

②1 x AC Power Cord

③1 x Matrix IR Remote

④4 x IR Receiver cable (1.5 meters)

⑤ 4 x IR Blaster cable (1.5 meters)

⑥1 x 3-pin Phoenix Connector

⑦1×CAT6 Cable

⑧1× USB to RS232 Cable

⑨1× User Manual

2.Specification:

Technical
HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K60 4:4:4
Color Space	RGB, YCbCr 4:4:4/4:2:2
HDMI Amplitude	T.M.D.S +/- 0.4Vpp
Differential Impedance	100±15ohm
ESD Protection	Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
RS232/Ethernet Control
Baud rate and Protocol	Baud rate: 9600, data bit: 8 Stop bit: 1, no parity checking
Ethernet	IE10.0+,HTML5
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	430mm (W)×220mm (D)×44mm (H)
Weight	5 kg
Power Supply	AC 110 - 240V
Power Consumption	60W (Max)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	"-20°C ~ 70°C / -4°F ~ 158°F
Relative Humidity	10%~50% RH (non-condensing)
Product name	18Gbps 4x4 Seamless IR Audio UHD HDMI2.0 Matrix With 4K@60Hz 4:4:4

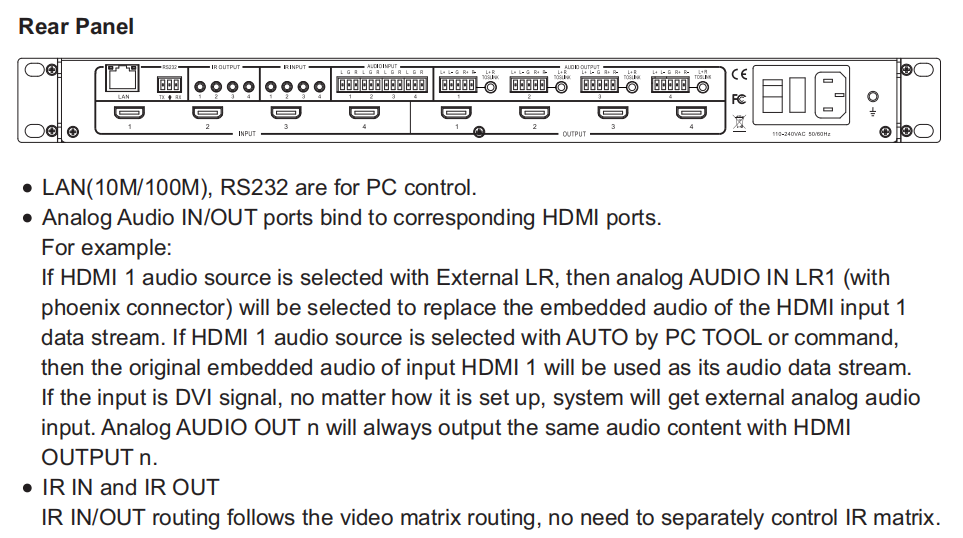

Operation controls and functions:
