18Gbps 4x4 Seamless UHD HDMI2.0 4KX2K@60 Hz 4:4:4 Matrix with wall
function
1. Introduction
The 18Gbps 4x4 seamless UHD Matrix can connect 4 HDMI sources to 4
HDMI displays.
Supported video resolution is up to 4K60 4:4:4. The product
supports IR matrix and Audio
matrix. IR matrix routing follows the video routing. Audio extract
and insert are supported.
The product supports CEC management and strong video wall
processing.
2. Features
1. HDMI 2.0 and HDCP 2.2 compliant;
2. Support 18 Gbps video bandwidth;
3. Support video resolution up to 4K60 4:4:4;
4. Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2;
5. Support seamless switching, video wall function;
6. Support CEC management;
7. Support audio matrix and IR matrix function;
8. Support external L/R audio insert on HDMI stream;
9. Support EDID management;
10. Support front panel, RS232, TCP/IP (LAN 10M/100M) control;
3. Package Contents
①1 x 4x4 seamless UHD Matrix
②1 x AC Power Cord
③1 x Matrix IR Remote
④4 x IR Receiver cable (1.5 meters)
⑤ 4 x IR Blaster cable (1.5 meters)
⑥1 x 3-pin Phoenix Connector
⑦1×CAT6 Cable
⑧1× USB to RS232 Cable
⑨1× User Manual
4. Specifications
| Technical |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K60 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4/4:2:2 |
| HDMI Amplitude | T.M.D.S +/- 0.4Vpp |
| Differential Impedance | 100±15ohm |
| ESD Protection | Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge) |
| RS232/Ethernet Control |
| Baud rate and Protocol | Baud rate: 9600, data bit: 8
Stop bit: 1, no parity checking |
| Ethernet | IE10.0+,HTML5 |
| Mechanical |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 430mm (W)×220mm (D)×44mm (H) |
| Weight | 5 kg |
| Power Supply | AC 110 - 240V |
| Power Consumption | 60W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | "-20°C ~ 70°C / -4°F ~ 158°F |
| Relative Humidity | 10%~50% RH (non-condensing) |
| Product name | 18Gbps 4x4 Seamless UHD HDMI2.0 4KX2K@60 Hz 4:4:4 Matrix with wall
function |
5. RS232/LAN Control Connection of the 18Gbps 4x4 Seamless UHD
HDMI2.0 4KX2K@60 Hz
4:4:4 Matrix with wall function:
5.1 RS232 Control Connection :
5.2 Network Control Connection :
PC
The product also supports Network control. Connect the LAN port of
the product to a PC via an UTP
cable, as shown in the following figure:
The product supports RS232 control. Connect the RS232 port of the
product to a PC via a RS-232 to
USB cable, as shown in the following figure:
5.3 Network Control Connection :
PC
The product also supports Network control. Connect the LAN port of
the product to a PC via an UTP
cable, as shown in the following figure:
6. Control via Web
The built-in Web GUI interface provides only basic control of the
matrix switcher and access
to the network settings. The following will be displayed when the
web interface is access
each time:
The default User Name is: *****
The default Password is: *****
After entering the User Name and Password, an interface similar to
the following will be
displayed:

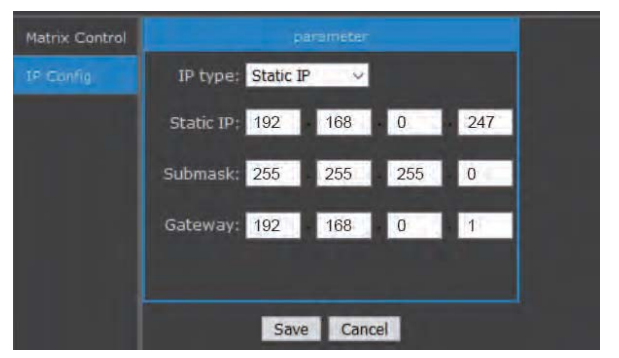

IP Config
The IP Config tab is used to change the IP settings of the matrix
switcher. Enter any necessary
changes and click “Save” to program the switcher to the new
settings, or click “Cancel” to
reject the changes.
