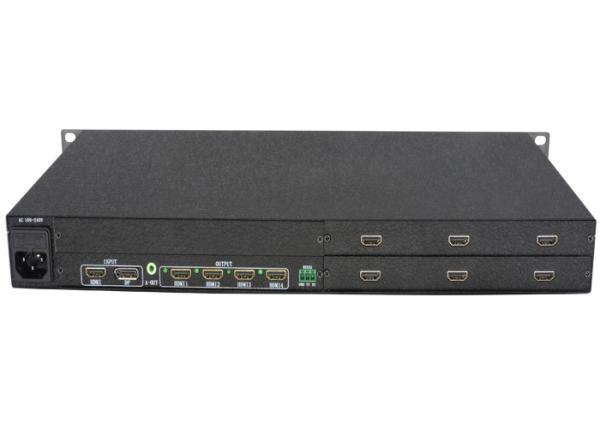

4K 60Hz HDMI 2.0 Video Input & Six 1080p Outputs 3x2 HDMI Video
Wall Controller
Description:
The 3x2 HDMI 4K Video Wall Controller can support any mode setting
within 16 splices at most, and
can also set different super resolutions for different splicing
modes. For example, 3x3 mode supports
5760x3240@30HZ input, 2x3 mode supports 5760x2160@30HZ input, 3x2
mode supports 3840x3240@30HZ
input, 1x3 supports 5760x1080@60HZ input, 3x1 supports
3240x1920@60HZ resolution input….
Specification:
| Name | Specification |
| input interface | 1-ch HDMI1.4 input,1-ch DP1.2 input |
| DP input resolution | 3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility
and custom resolution; |
| HDMI input resolution | Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and
custom resolution; |
| Output Interface | 2 to 16 HDMI ports output, support audio and video synchronous
output; 1 3.5mm audio left and right channel stereo, used to connect to
stereo; |
| output resolution | 1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution
can be switched; |
| color depth | 24bit, 16.77 million colors |
| way to control | Chassis buttons, remote control, RS232; |
| Input voltage | Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode | Any mode within 16 stitching |
| Chassis size, weight, power |
| small case | Machine size: 302mm (length) x 152mm (width) x 40mm (height),
weight: 1.3KG |
| Package Size: |
| 1U chassis | Machine size: 440mm (length) x 243mm (width) x 45mm (height),
weight: 3.4KG |
| Product name | 4K 60Hz HDMI 2.0 Video Input & Six 1080p Outputs 3x2 HDMI Video
Wall Controller |
Main features for 3x2 HDMI Video Wall Controller :
①Support 1 channel DP1.2 and 1 channel HDMI1.4 input;
②Support any splicing mode customization within 16 splices;
③Modular design, can customize a variety of different splicing
scales;
④A single DP input port supports 5760x3240@30HZ, 5760x1080@60HZ and
other ultra-high resolution input;
⑤Support custom resolution function, realize super-resolution
display with equal proportion without deformation
and stretching;
⑥Supports a variety of output resolution options, compatible with
LCD screens and projections with different resolutions;
⑦Support 1x2, 1x3, 2x1, 2x3, 3x1, 3x2, 3x3 complete point-to-point
lossless display, and other modes are proportional display;
⑧Multiple units can be used together to achieve point-to-point
display of super-large video walls;
⑨Supports 180-degree flip and edge shielding of any image;
⑩Support infrared remote control, chassis key, RS-232 control;
Dimension for 3x2 HDMI Video Wall Controller :
