18Gbps HDBaseT HDMI2.0 150 meters 4KX2K@60Hz 4:4:4 Extender with USB 2.0

1. Introduction:

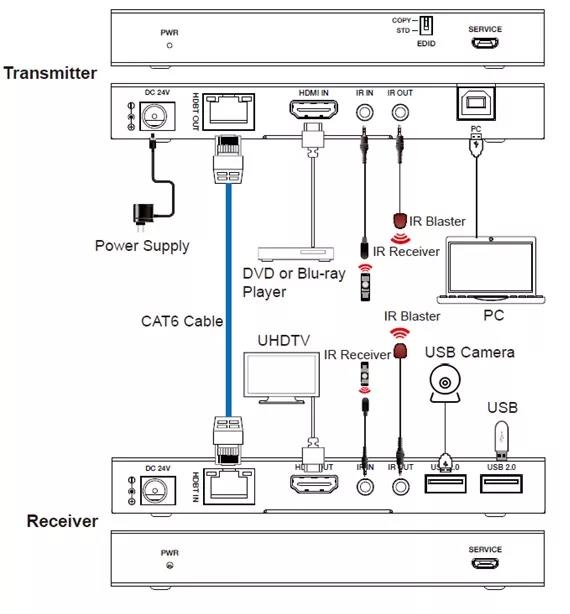

This 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to

a distance up to 150m via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal

and transmits it through LAN cable. It can easily control signal source device or display device from the remote

end through bi-directional IR signal pass- through function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also

supports USB 2.0 transmission and POC function.

The extender can be widely used in other fields such as video conference system, multimedia signal broadcasting,

HDMI signal extension, etc.

2. Features:

☆ HDMI 2.0b and HDCP 2.2 compliant

☆ Support 18Gbps video bandwidth

☆ Support video resolution up to 4K2K@60Hz YUV 4:4:4

☆ The transmission distance can be extended up to 492ft / 150m at the

resolution of 1080P@60Hz, or 394ft / 120m at 4K2K@60Hz 4:4:4 via a

single CAT6 cable

☆ Support bi-directional IR signal and USB KVM signal pass-through

☆ Support bi-directional POC (Power over Cable) function

☆ Support USB 2.0 transmission

☆ EDID management

☆ Compact design for easy and flexible installation

☆18Gbps HDBaseT HDMI2.0 150 meters 4KX2K@60Hz Extender with USB 2.0

3. Package Contents for 18Gbps HDBaseT HDMI2.0 150 meters 4KX2K@60Hz Extender with USB 2.0:

① 1 x 18Gbps HDBaseT Extender (Transmitter)

② 1 x 18Gbps HDBaseT Extender (Receiver)

③ 1 x IR Blaster cable (1.5 meters)

④ 1 x IR Wideband Receiver cable (1.5 meters)

⑤ 4 x Mounting Ears

⑥ 8 x Machine Screws (KM3*4)

⑦ 1 x 24V/1A Locking Power Supply

⑧ 1x User Manual

4. Specifications:
