    Full 1080P 3D 4k 60hz 4x1 Quad Hdmi Multiviewer With Seamless Switcher Function

    Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function


    1.Introduction:
    HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.

    It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching

    4 HD input signal synchronously. The control methods of the switch is flexible, it can be switched via button and IR control.

    It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.

    2.Features:
    ***Compatible HDMI 1.3a, HDCP 1.2, input compatible DVI 1.0 version;
    ***Support IR control;
    ***Support 4 HDMI input, 1 HDMI output;
    ***Support 4 channels HDMI signal screen segmentation;
    ***Support 4 channels HDMI signal seamless switching;
    ***Support highest resolution up to 1080P/60Hz;
    ***Support resolution: 1080P, 720P, 1080i, 1024*768, 1360*768 and so on;
    ***Support audio output format: PCM2.0;
    ***Support standard 26AWG cable, input up to 15m/49ft, output up to 15m/49ft;
    ***DC 12 V/2 A power adapter;

    ***Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function;


    3. Specifications

    Technical
    HDMI ComplianceHDMI 1.4b
    HDCP ComplianceHDCP 1.4
    Video Bandwidth10.2Gbps
    Video Resolutions3840x2160@30Hz,1920x1080@50/60Hz,1280x720@50/60Hz,1920x1200@60Hz,1024x768@60Hz
    Color Depth8-bit
    Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2
    Analog Audio FormatsLPCM2.0 44.1KHz 48KHz
    ESD Protection

    Human-body Model:

    ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

    Connections
    Inputs ports

    4x HDMI Type A [19-pin female]

    1x SEVICER [Micro USB, Update port]

    Outputs ports

    1x HDMI Type A [19-pin female]

    1x VGA [VGA-D]

    1x Audio [3.5mm Stereo Mini-jack]

    Mechanical
    HousingMetal Enclosure
    ColorBlack
    Dimensions185mm (W)×128mm (D)×20mm (H)
    Weight595g
    Power Supply

    Input: AC100~240V 50/60Hz, Output: DC12V/1A

    (US/EU standards, CE/FCC/UL certified)

    Power Consumption7.68W (max)

    Operating

    Temperature

    0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature-20°C ~ 60°C / -4°F ~ 140°F
    Relative Humidity20~90% RH (non-condensing)
    Product nameFull 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function

    4. Operation Controls and Functions for full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI

    Seamless Switcher Function

    4.1 Front Panel



    NumberNameFunction description
    1POWER LED

    The LED will illuminate green when the unit is

    working, red when the unit is in standby mode.

    2IRIR receiver window. It accepts the remote control signal of this device only.
    3CH1/CH2/CH3/CH4 buttonSelects input channel button (Please see “6. Display Modes” detail description).
    4MODE buttonPress this button to cyclical selection display mode output (Please see “6. Display Modes” detail description). Press this button up to 5s, the output screen is full screen and equal proportion display.
    5RESOCycling select different output resolution. Press this button up to 5s to opening or closing window display frame.
    6SERVICE portFirmware update used. (Manufacture use only.)

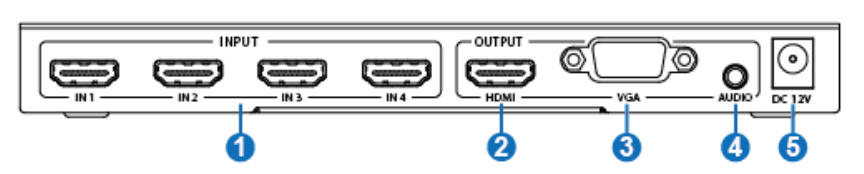

    4.2 Rear Panel

    NumberNameFunction description
    1HDMI INPUT

    Connect to HDMI source device such as DVD

    player or PS4.

    2HDMI OUTPUT

    Connect to HDMI display device such as TV or

    Projector with a HDMI cable.

    3VGA OUTPUTVGA output port, this port output signal is the same as the HDMI output port.
    4AUDIO OUTPUT

    Analog audio output port. (Note: If the HDMI output is MODE 1, the audio output follows the video content. If the HDMI output is MODE 2/3/4/5, press CH1/CH2/CH3/CH4 up to 5s to selecting audio output or using remote control to cyclical selection audio output. The default status is CH1 screen

    audio output.)

    5DC 12VPlug the 12V/1A DC power supply into the unit and connected the adapter to an AC outlet.

    Full 1080P and 3D 4k@60hz 4x1 quad hdmi multiviewer 4k with HDMI Seamless Switcher Function
