Description:
The multi-screen extender can support any mode setting within 16
splices at most,
and can also set different super resolutions for different splicing
modes. For example,
3x3 mode supports 5760x3240@30HZ input, 2x3 mode supports
5760x2160@30HZ input,
3x2 mode supports 3840x3240@30HZ input, 1x3 supports 5760x1080@60HZ
input,
3x1 supports 3240x1920@60HZ resolution input….
The main function:
1. Supports a variety of output resolution options, compatible with
LCD screens and projections with different resolutions;
2. Support 1x2, 1x3, 2x1, 2x3, 3x1, 3x2, 3x3 complete point-to-point
lossless display, and other modes
are proportional display;
3. Multiple units can be used together to achieve point-to-point
display of super-large video walls;
4. Supports 180-degree flip and edge shielding of any image;
5. Support infrared remote control, chassis key, RS-232 control;
Specification:
| name | |
| input interface | 1-ch HDMI1.4 input ,1-ch DP1.2 input. |
| DP input resolution | 3840x2160@60HZ,5760x3240@30HZ,1920x3240@60HZ.Backward compatibility
and custom resolution; |
| HDMI input resolution | Support 3840x2160@30HZ, 1920x3240@30HZ, backward compatible and
custom resolution; |
| signal output | |
| Output Interface | 2 to 16 HDMI ports output, support audio and video synchronous
output; 1 3.5mm audio left and right channel stereo, used to connect to
stereo; |
| output resolution | 1024*768@60HZ,1280*800@60HZ,1280*720@60HZ,1920*1080@60HZ,1920*1200@60HZ,Resolution
can be switched; |
| color depth | 24bit, 16.77 million colors |
| way to control | Chassis buttons, remote control, RS232; |
| Input voltage | Small chassis DC12V; 1U and 2U chassis AC110-220V; |
| display mode | Any mode within 16 stitching |
| Chassis size, weight, power |
| small case | Machine size: 302mm (length) x 152mm (width) x 40mm (height),
weight: 1.3KG |
| Package Size: |
|
| 1U chassis | Machine size: 440mm (length) x 243mm (width) x 45mm (height),
weight: 3.4KG |
|
|

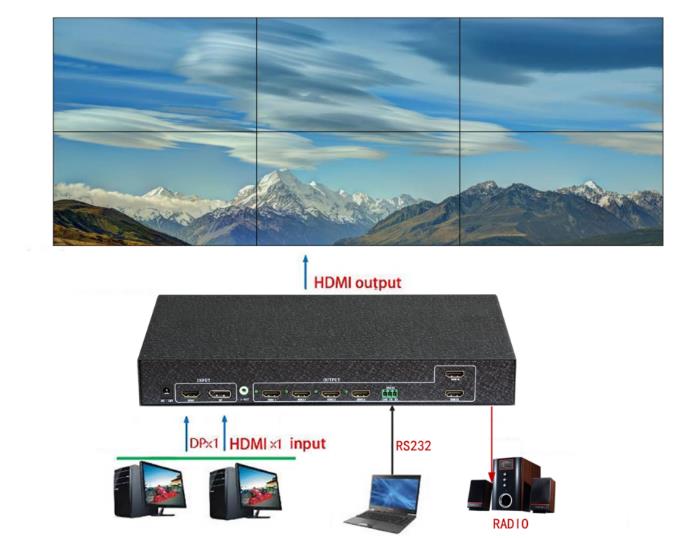

Connection diagram:
