3x3 hdmi video wall processor with 4 Input 9 Output
Introduction
The 3x3 hdmi video wall processor with 4 Input 9 Output is a
high-performance HDMI 2.0 video signal processor.
It can be used as a video wall splicing processor or as a seamless
switching matrix switcher with4 inputs and 16 outputs.
All standalone output display or video wall display can work in
multiview mode with a maximum of 4 windows.
1. Panel Layout
2.1 Front view
- LCM display screen: displays the routing status of each channel in
the matrix. Used together with front buttons, it can set and view
some parameters
- OUT SELECT:1, 2...9, 0, ALL
- IN SELECT: 1, 2, 3, 4
Press OUTPUT m +INPUT n +ENTER, switch input n to output m
- ALL button: Press ALL + INPUT n +ENTER, switch input n to all
output ports
- Lock button : Hold this button more than 3 seconds, all the fronts
buttons will be locked and will not work. Hold it more than 3
seconds again, unlock
- Press buttons RES + OUTPUT m + NEXT + ENTER with guide of front LCM
screen display, to change output resolution of OUTPUT m
- Press buttons EDID + INPUT n + NEXT + ENTER with guide of front LCM
screen display, to change the EDID mode of INPUT n
- SAVE button : Press SAVE+ OUTPUT m +ENTER, save current routing and
screen layout to scene m
- RECALL button: Press RECALL+ OUTPUT m +ENTER, load scene m for
current displaying
- INFO button: Continuously press INFO button, front LCD panel will
loop display IR ON/OFF,RS232 Baud Rate and IP parameters etc,.
- IR: IR receiver, can be disabled by RS232 command
- 3x3 hdmi video wall processor with 4 Input 9 Output
2.2 Rear view
- LAN control(TCP/IP or Web Control)
IP address: 192.168.0.247, Submask: 255.255.255.0, Gateway:
192.168.0.1, Baud Rate: 9600, NetPort: 23
Web login account : admin,password : admin
Baud Rate: 9600
Baud Rate: 9600
T: Main Unit -> PC, G: Ground, R: Main Unit <- PC
3x3 hdmi video wall processor with 4 Input 9 Output ;1
LR/Toslink(Spdif-Optical) audio output
Note: The audio output can be switched among IN1,IN2,IN3,IN4 via
RS232 command or PC Tool

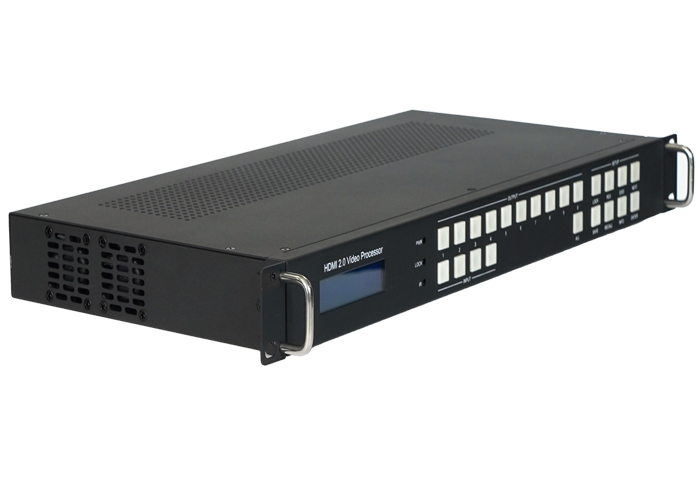

3x3 hdmi video wall processor with 4 Input 9 Output 's pictures as below:
