Product Description:

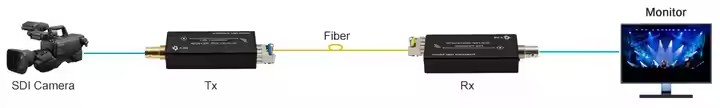

The 12G SDI Uncompressed 4K Fiber Extender provides reliable,
long-distance, real-time video transmission for broadcast and
professional AV applications. Designed to support 12G-SDI
uncompressed 4K video, embedded audio, and bi-directional data,
this 12G SDI fiber extender ensures lossless signal transport over
fiber optics, up to 20 kilometers. With advanced FPGA video
processing technology, the extender converts SDI video into optical
signals, ensuring high-speed transmission with no frame loss or
image degradation. The integrated clock recovery technology
guarantees smooth and zero frame loss during long-distance
transmission, ideal for critical applications like live
broadcasting and professional AV setups.
Features:
- Uncompressed 4K Video Transmission: Supports 12G-SDI video signals,
enabling the transport of 4K UHD video without compression loss.
- Bi-Directional Data & Audio: Transmit audio signals and
bi-directional data along with video over a single fiber
connection, reducing complexity.
- Long-Distance Fiber Transmission: Maximum distance of 20km over
single-mode fiber for remote broadcasting and studio setups.
- Advanced FPGA Processing: Ensures high-speed, stable SDI-to-optical
signal conversion for professional applications.
- Clock Recovery Technology: Prevents frame loss and ensures smooth
video playback during long-distance fiber optic transmission.
- Broad Compatibility: Compatible with a range of SDI devices, 12G
SDI converters, and broadcast equipment.
Technical Parameters:
| Parameter | Description |
|---|
| Video Format Support | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, ASI |
| Maximum Resolution | 4K UHD @ 60Hz |
| Audio Support | Embedded Audio / Audio De-embedding |
| Data Transmission | Bi-Directional Data (RS485/RS232) |
| Transmission Distance | Up to 20km over single-mode fiber |
| Optical Interface | LC/SC connectors (customizable) |
| Processing Technology | FPGA-based SDI to Optical Conversion |
| Clock Recovery | Supported – Ensures zero frame loss |
| Power Supply | DC 12V / Optional Redundant Power Input |
| Operating Temperature | -20°C to +70°C |
| Compliance | CE, RoHS Certified |
Applications:
The 12G SDI Uncompressed 4K Fiber Extender is widely used across
various industries that demand high-quality, real-time video
transport. Key applications include:
Broadcast Television: Provides 4K UHD video transport for remote
production, live broadcasts, and mobile studios.
Medical Imaging: Essential for medical education, surgical
procedures, and live video feeds where high clarity is critical.
Video Conferencing: Supports real-time 4K video conferencing,
ensuring clear video and audio quality for corporate
communications.
Education & Training: Perfect for live streaming, remote learning,
and distance education that require high-definition video.
Surveillance Systems: Ideal for long-distance security camera feeds
and surveillance networks that require 4K video resolution.
