Product Description:
The 12G SDI 4K Uncompressed Video Fiber Extender is a
high-performance solution for uncompressed 4K video transmission
over fiber optics, specifically designed for broadcasting,
professional AV, and video production environments. This 12G SDI
fiber extender supports one channel of 12G-SDI video with embedded
audio and bi-directional data transmission. Its compatibility with
12G SDI converters and ASI signals ensures seamless integration
with other equipment in high-end broadcast workflows. Powered by
advanced FPGA video processing, the extender converts SDI signals
into optical fiber for reliable, long-distance transmission,
maintaining lossless video quality. Integrated clock recovery
technology guarantees real-time, zero frame loss, and smooth video
playback, ensuring the highest level of performance for critical
video applications.
Product Features:
- 12G SDI Video & ASI Support: Transmit uncompressed 4K UHD video
over single-mode fiber, supporting 12G-SDI, 3G-SDI, HD-SDI, and ASI
signals.

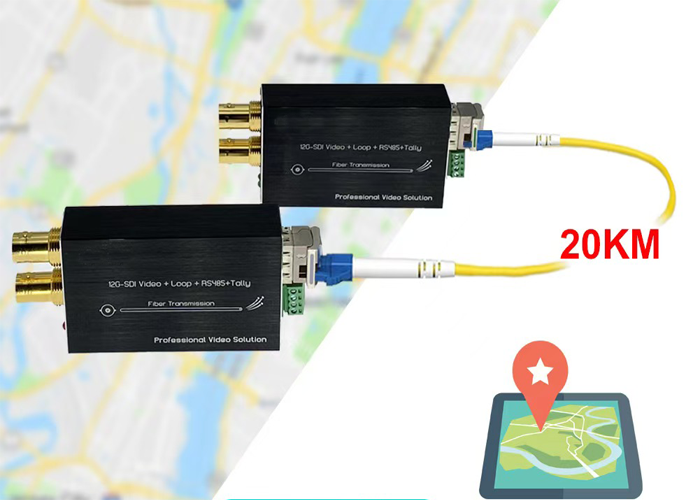

- Long-Distance Fiber Transmission: Achieve up to 20km distance on
single-mode fiber, ideal for remote broadcast setups and mobile
production.
- Real-Time 4K Video Transport: Perfect for live streaming, broadcast
environments, and video conferencing with low-latency requirements.
- Embedded Audio & Bi-Directional Data: Supports embedded audio and
two-way data transmission over a single fiber connection, reducing
cabling complexity.
- FPGA Video Processing: High-quality conversion of SDI to optical
signals, ensuring high-speed, stable transmission.
- Clock Recovery for Perfect Sync: Ensures no frame loss during
long-distance transmission, providing smooth, uninterrupted video
playback.
- Wide Compatibility: Works seamlessly with a broad range of 12G SDI
converters, SDI routers, and broadcast systems.
Technical Parameters:
| Parameter | Description |
|---|
| Video Format Support | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, ASI |
| Maximum Resolution | 4K UHD @ 60Hz |
| Audio Support | Embedded Audio / Audio De-embedding |
| Data Transmission | Bi-Directional Data (RS485/RS232) |
| Transmission Distance | Up to 20km over single-mode fiber |
| Optical Interface | LC/SC connectors (customizable) |
| Processing Technology | FPGA-based SDI to Optical Conversion |
| Clock Recovery | Supported – Ensures zero frame loss |
| Power Supply | DC 12V / Optional Redundant Power Input |
| Operating Temperature | -20°C to +70°C |
| Compliance | CE, RoHS Certified |
Applications:
The 12G SDI 4K Uncompressed Video Fiber Extender is the ideal
solution for industries that require real-time, high-quality video
transmission. Key applications include:
Broadcast & Live Production: Perfect for remote broadcast, studio
production, and live event streaming, providing high-quality,
uncompressed 4K video transmission.
Medical Imaging: Used in medical education, teaching, and surgical
video transmission where clarity and low-latency are crucial.
Video Conferencing: Ensures high-definition video for corporate
video conferencing systems, ideal for real-time communication and
collaboration.
Education & E-Learning: Facilitates live educational streaming,
providing high-definition video for online classrooms and distance
learning environments.
Security Surveillance: Provides high-quality video over long
distances for surveillance systems, ideal for critical monitoring
applications.
